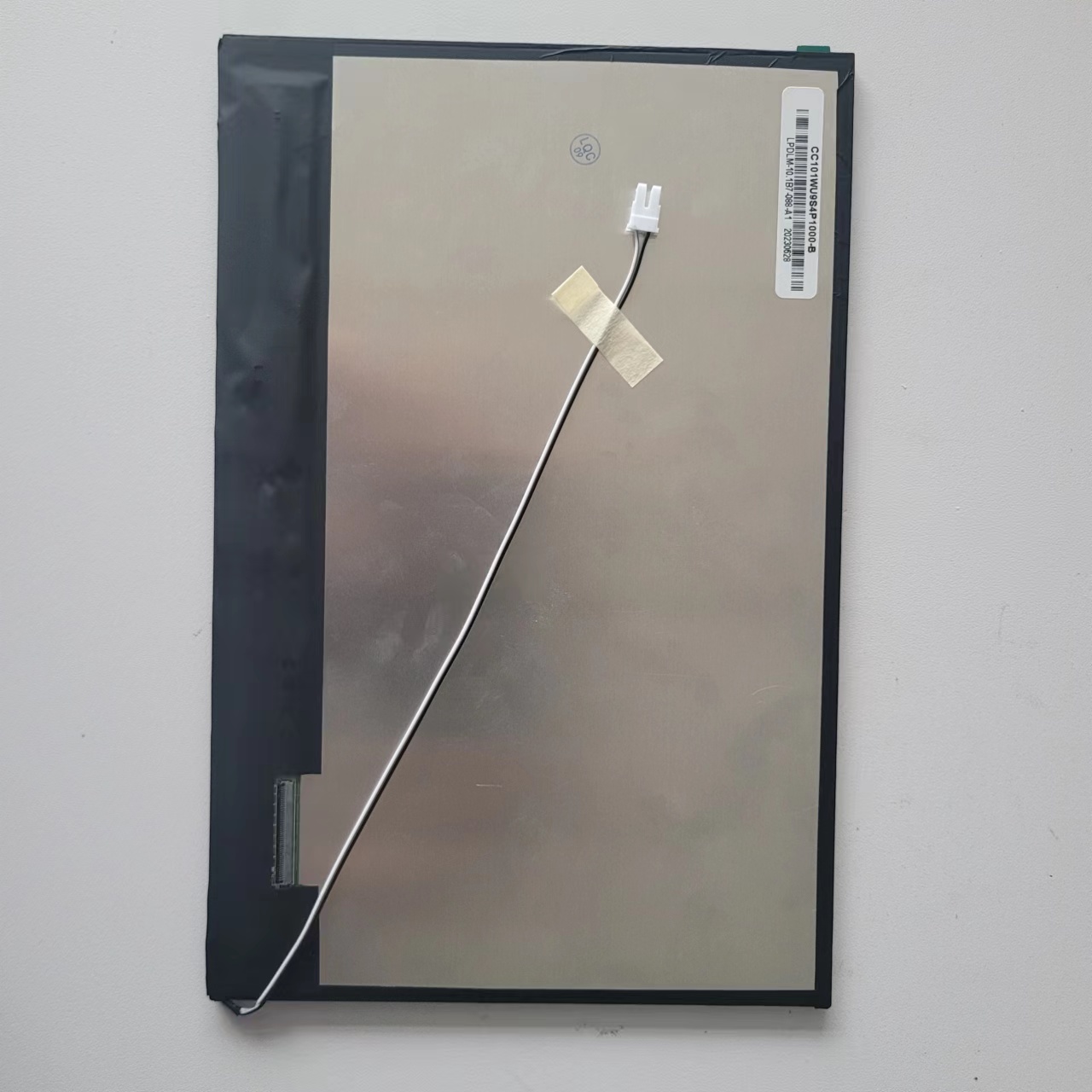

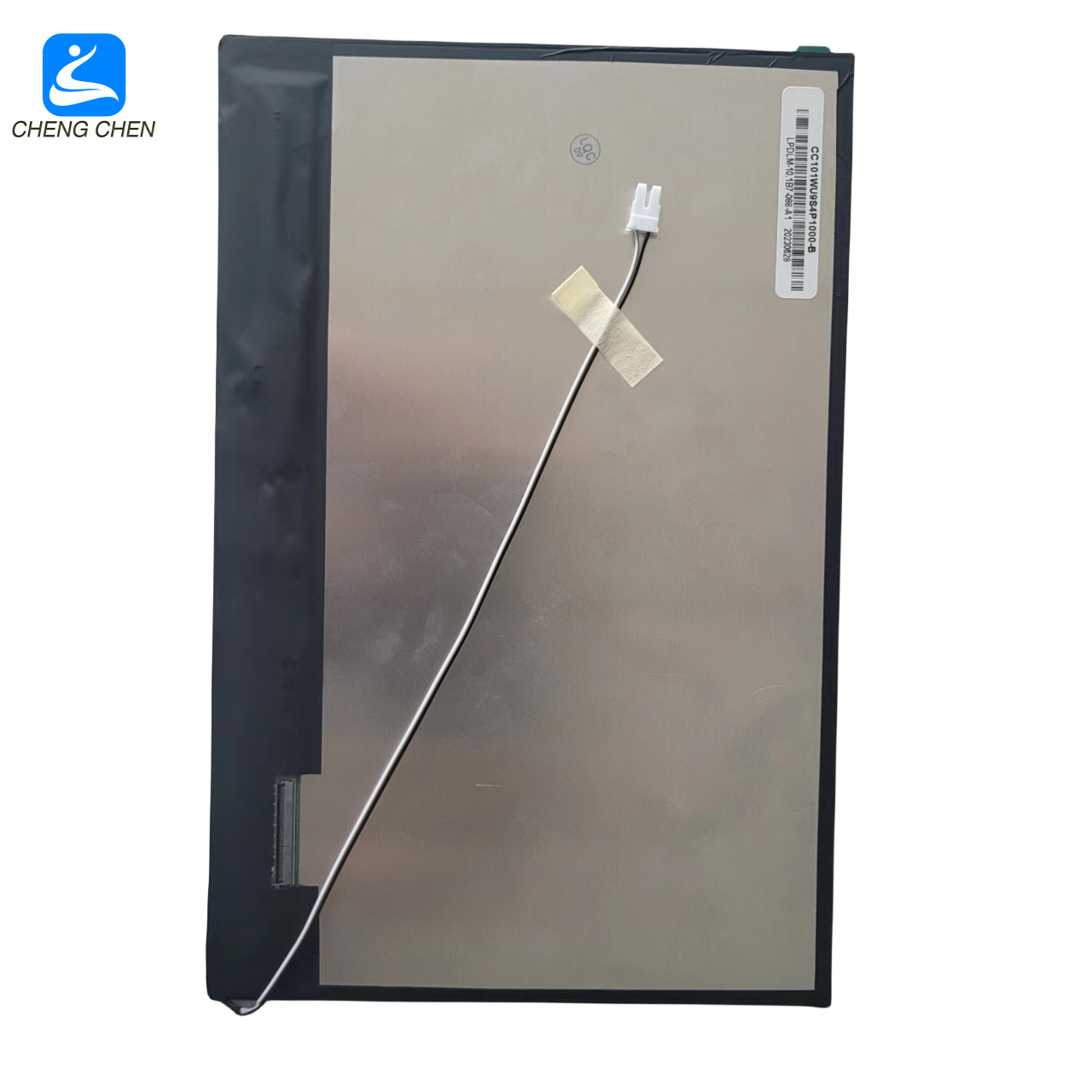

CC101WU9S4P1000 is a color active matrix TFT LCM using amorphous silico

n TFT‘s (Thin Film Transistors) as an active switching devices. This module ha

s a 10.1 inch diagonally measured active area with WUXGA resolutions (1920

horizontal by 1200 vertical pixel array). Each pixel is divided into RED, GREEN,

BLUE dots which are arranged in vertical stripe and this module can display 1

6.7M colors.

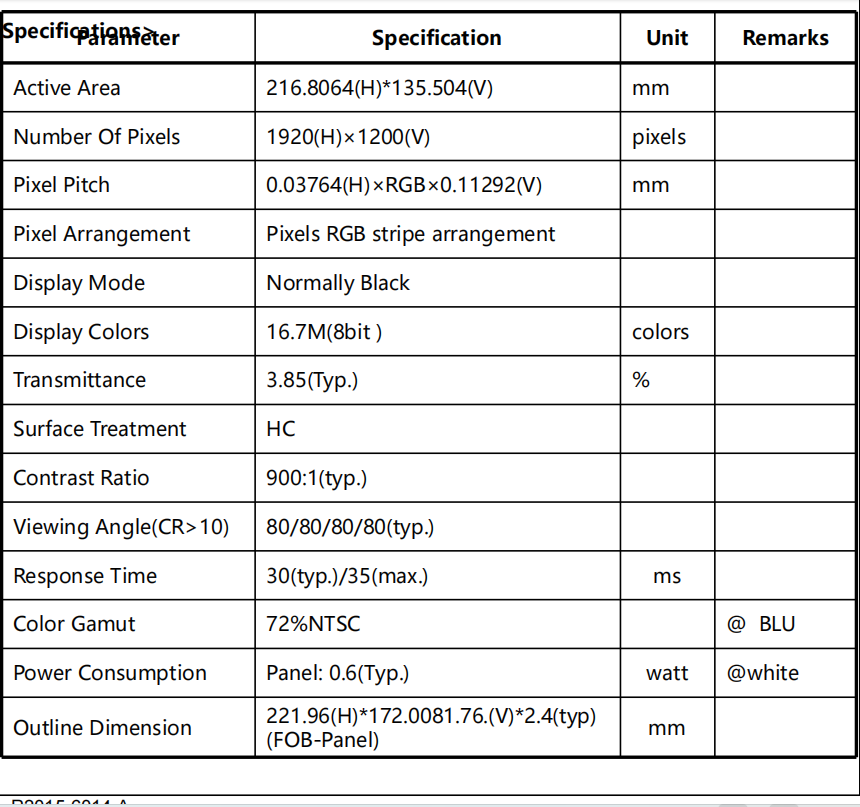

Product Parameter

1. Screen size: 10.1inch
2. Resolution: 1920(horizontal)*1200(vertical)
3. Technology type: a-Si TFT

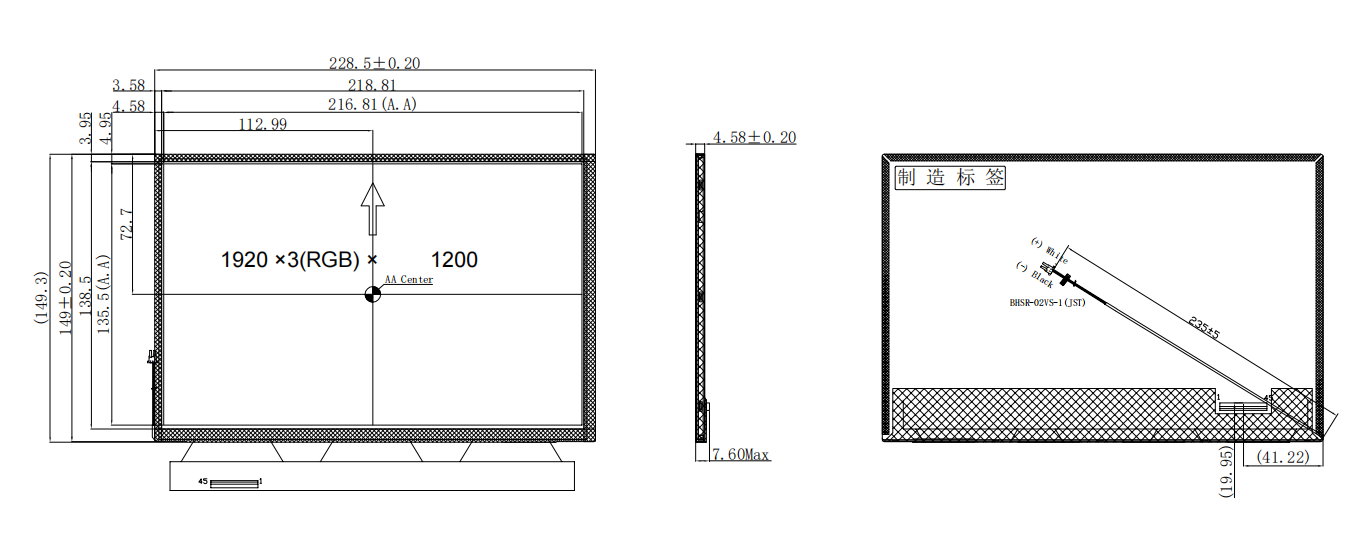

4. Overall dimensions (W x H x D) (mm) :149.3(W)*228.5(H)*4.58(T)
5. Active Area(mm):135.5(W)*216.8(H)
6. Display interface:2-port LVDS
7. Color depth: 16.7M(8bit)
8. Brightness: 300-1300cd/m²
9. Perspective: 85/85/85/85

10.NTSC:72%

11. Working temperature: -20℃+70℃
