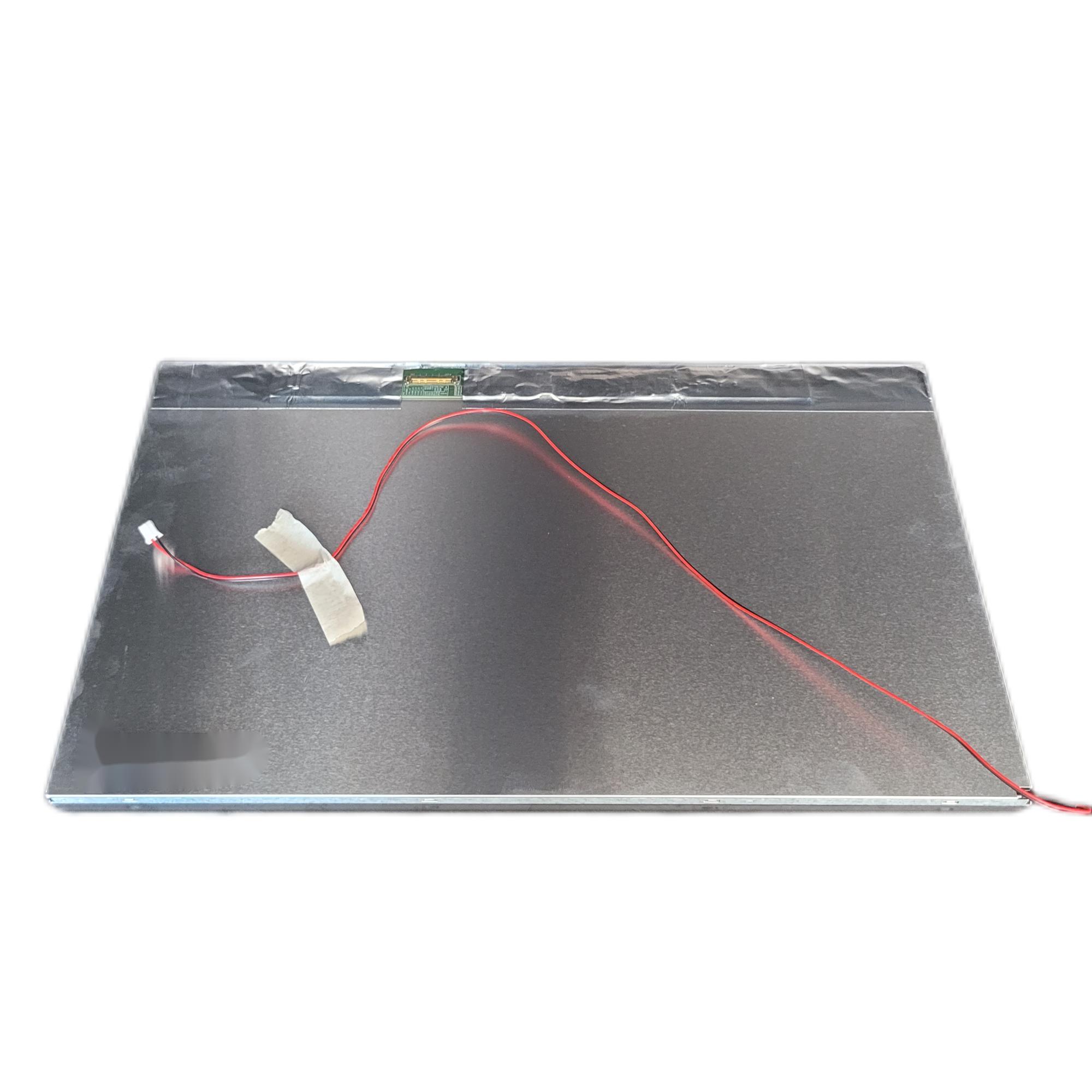

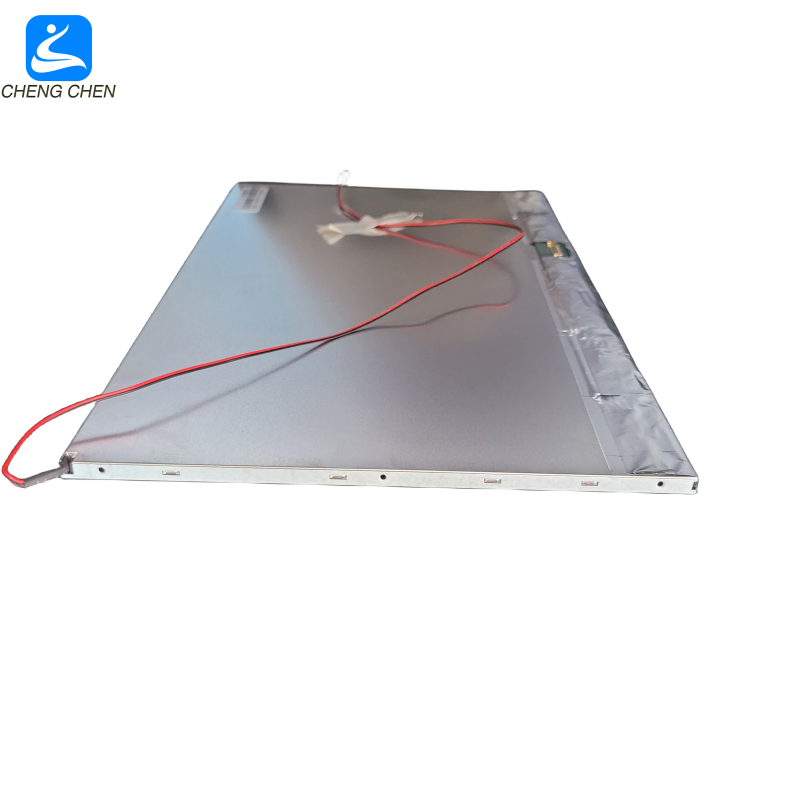

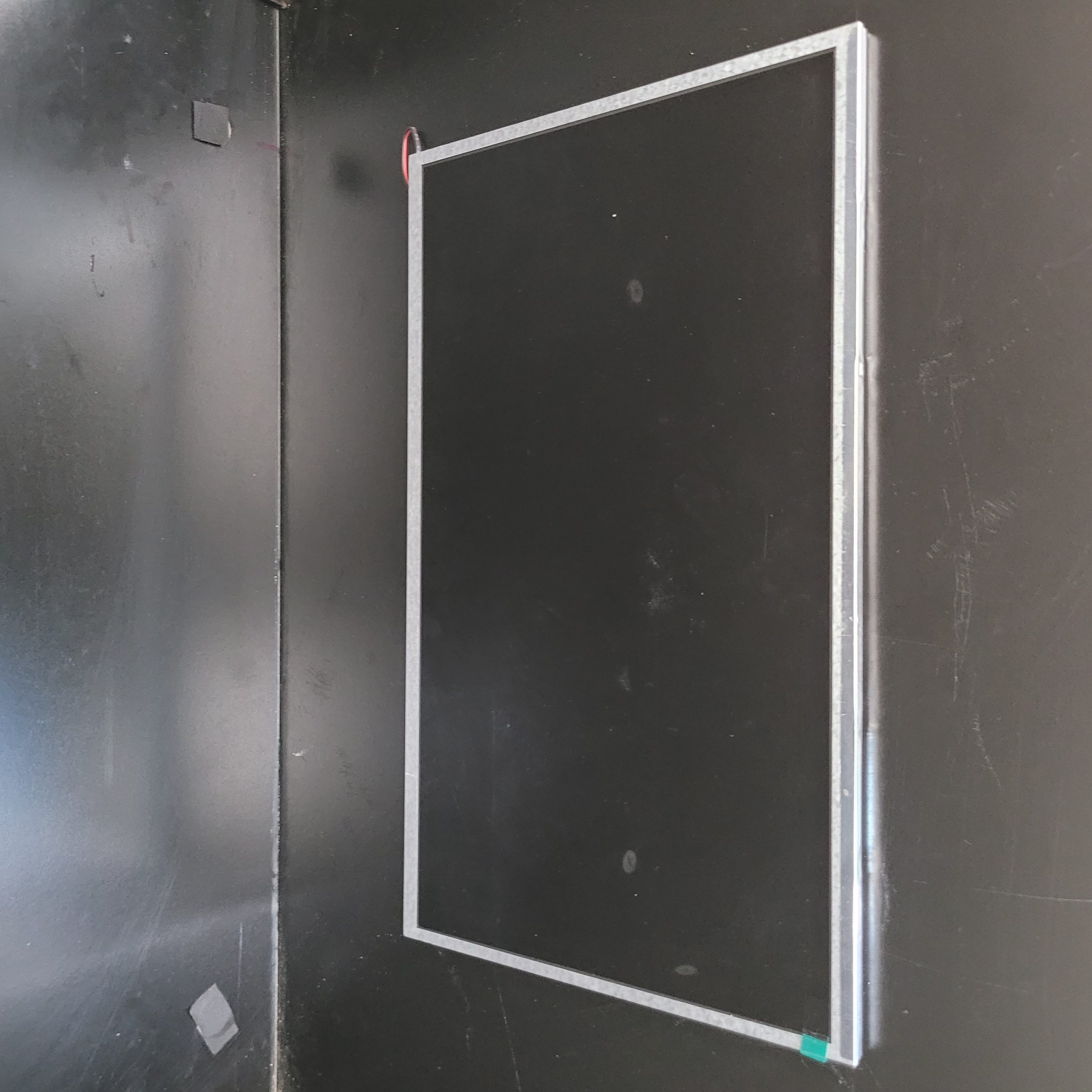

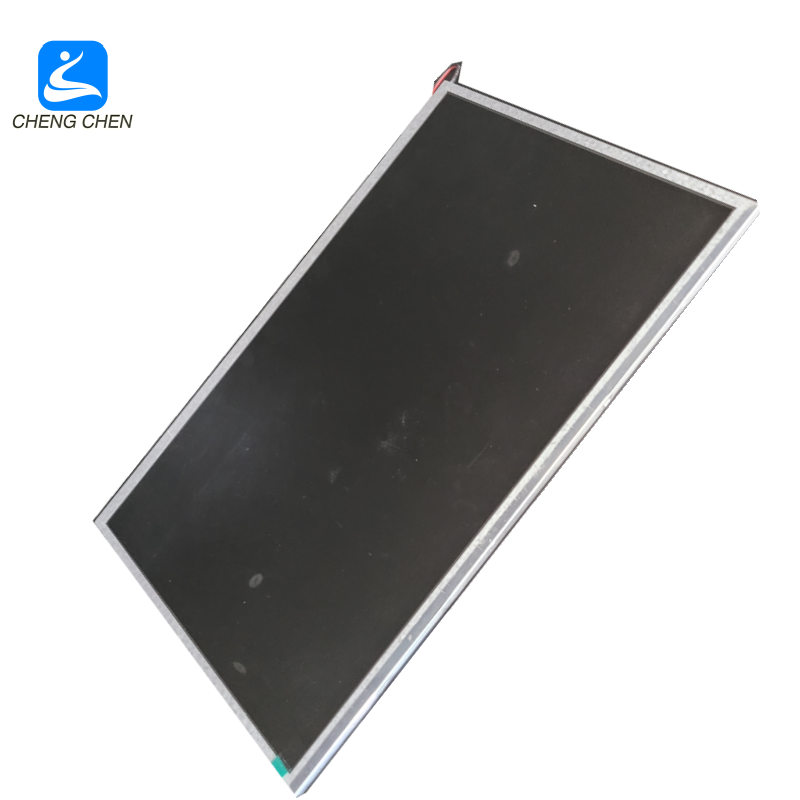

ESL116B40-122-1301is a color active matrix TFT LCD FOB using amorphous silicon TFT’s

(Thin Film Transistors) as an active switching devices. This FOB has a 11.60 inch diagonally

measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each

pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this

module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low

reflection and higher color type

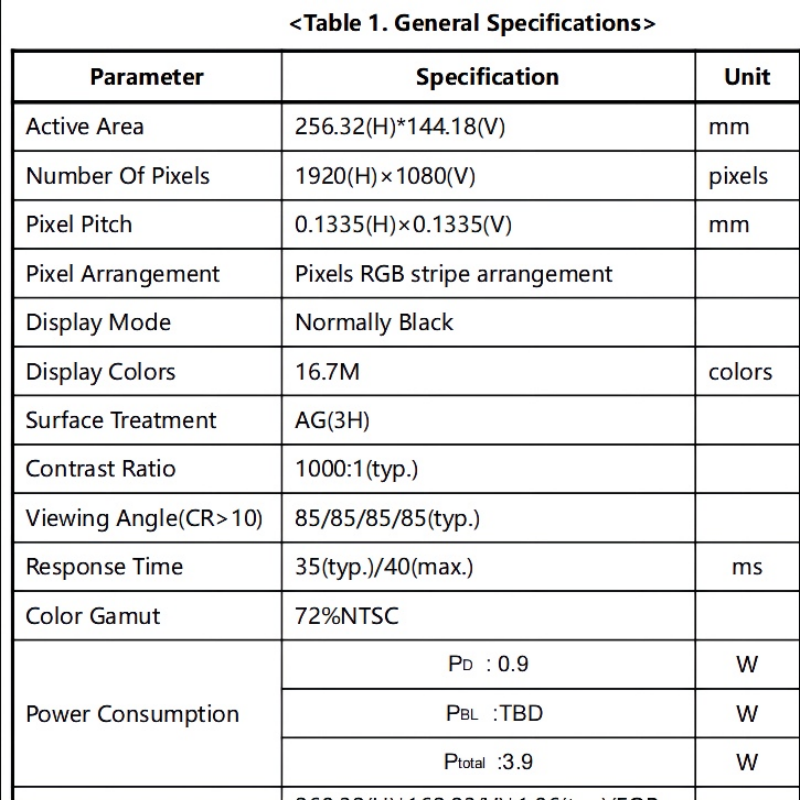

Product Parameter

1. Screen size: 11.6inch
2. Resolution: 1920(horizontal)*1080(vertical)
3. Technology type: a-si TFT
4. Overall dimensions (W x H x D) (mm) :267.72 (H) X 164.42 (V) X 6.2(D)
5. Active Area(mm):256.320 (H) × 144.180(V)
6. Display interface:EDP

7.Contrast Ratio:1000:1

7. Color depth: 16.7M
8. Brightness: 500-1000cd/m²
9. Perspective: 85/85/85/85

10.NTSC:72%

11. Working temperature: -20℃+70℃

12:Touch Technology: custom

13:Report Rate:60HZ
