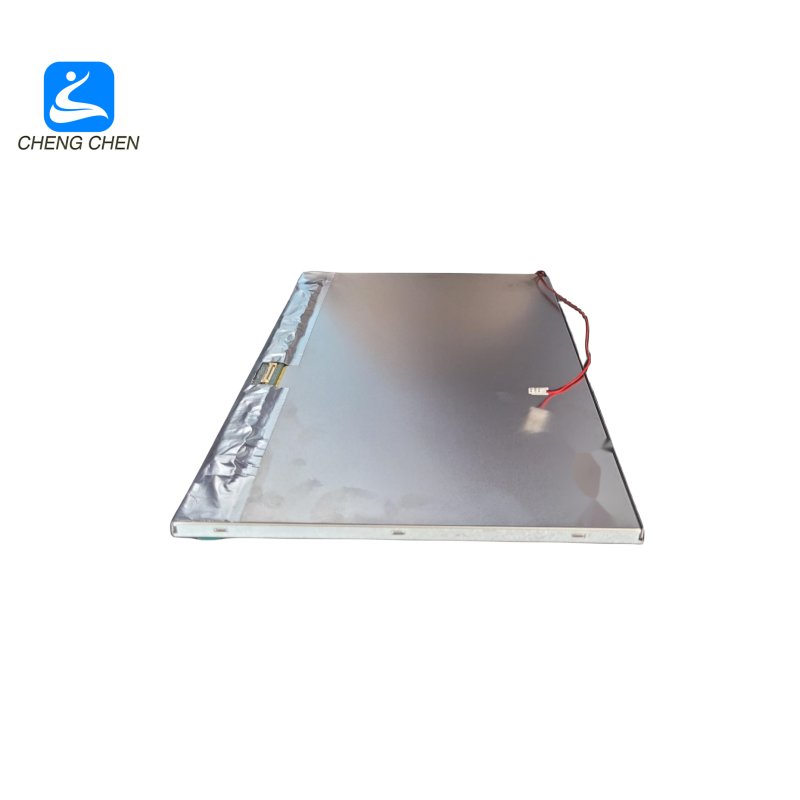

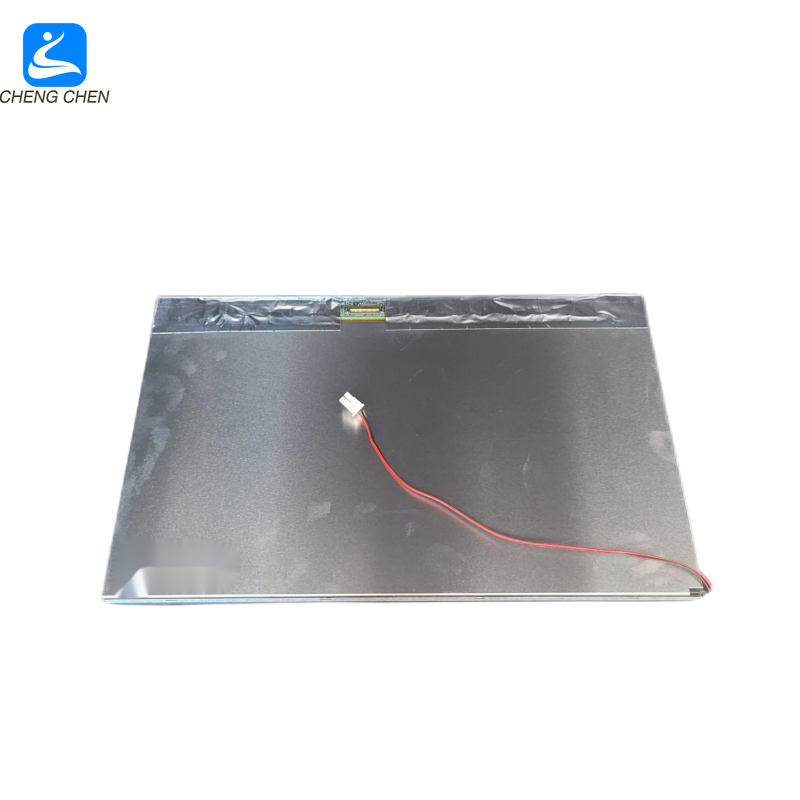

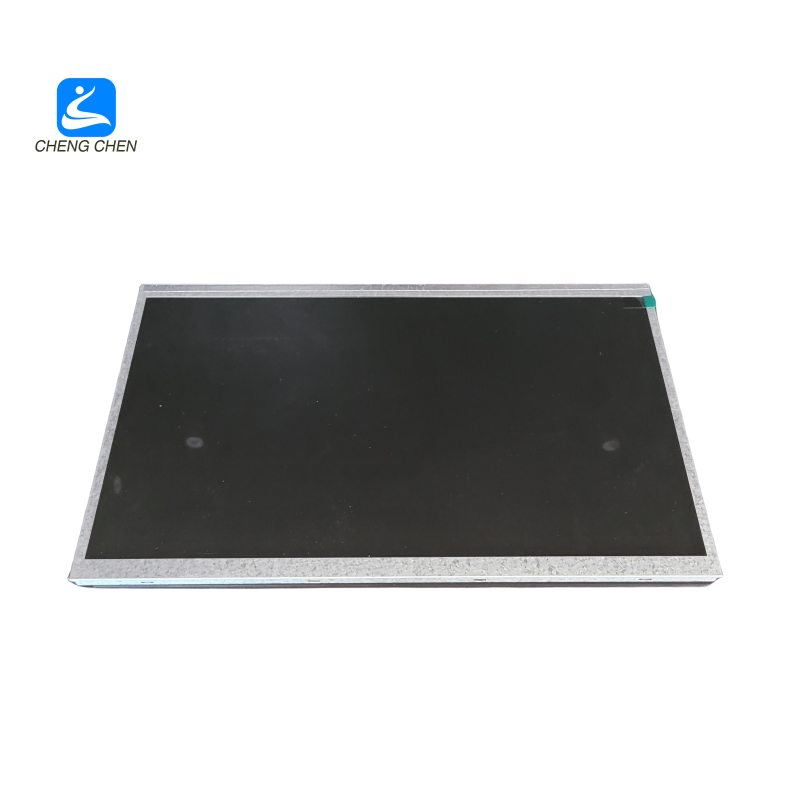

CC121WXM-1000 is a color active matrix TFT LCD module using amorphous

silicon TFT‘s (Thin Film Transistors) as an active switching devices. This

module has a 12.1inch diagonally measured active area with WXGA

resolutions (1280 horizontal by 800 vertical pixel array). Each pixel is divided

into RED, GREEN, BLUE dots which are arranged in vertical stripe and this

module can display 16.7M colors.

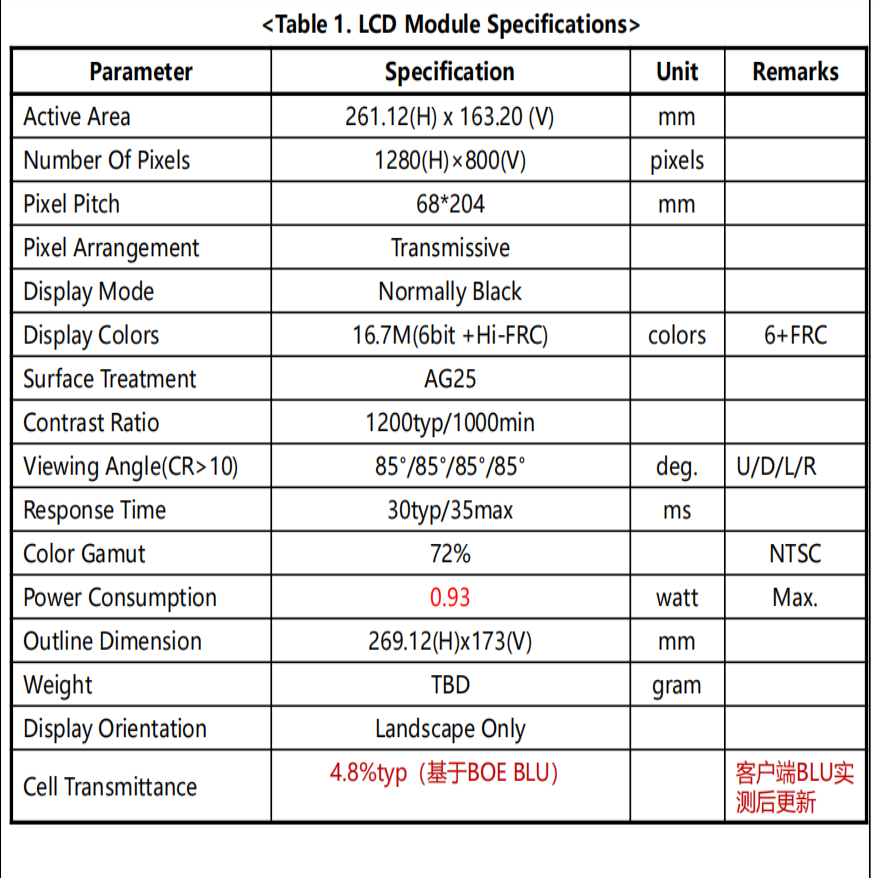

1. Screen size: 12.1inch
2. Resolution: 1280(horizontal)*800(vertical)
3. Technology type: a-Si TFT
4. Overall dimensions (W x H x H) (mm) : 180.6(W)×277.7(H)×7.5(D)
5. Active Area(mm):163.2(H) x 261.12(V)
6. Display interface: LVDS
7. Color depth: 16.7M(6bit +Hi-FRC)
8. Brightness: 500-100cd/m²
9. Perspective: 85/85/85/85

10.NTSC: 72%

11. Working temperature: -20℃+70℃
