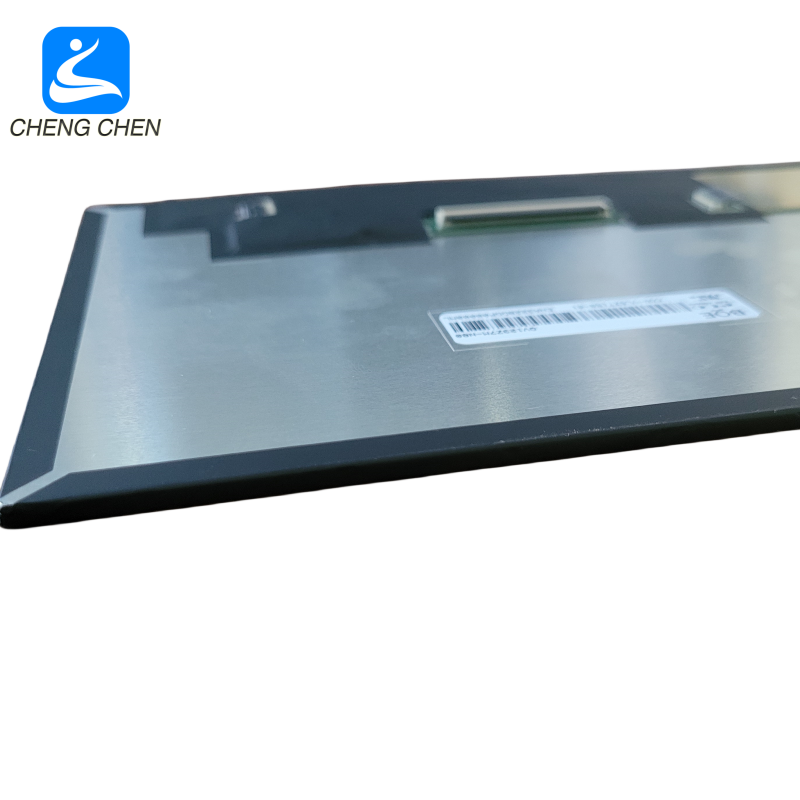

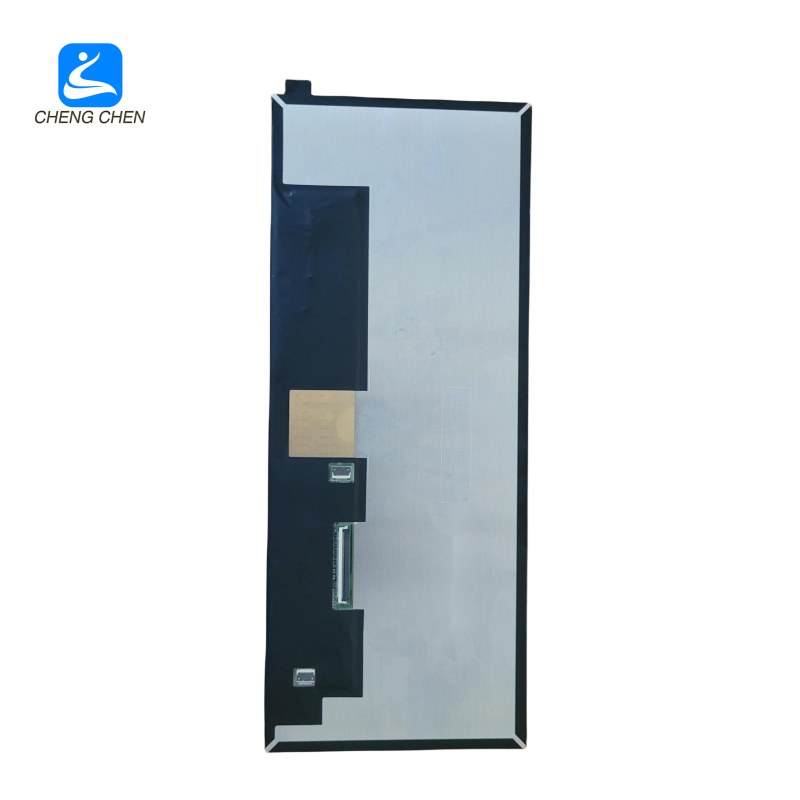

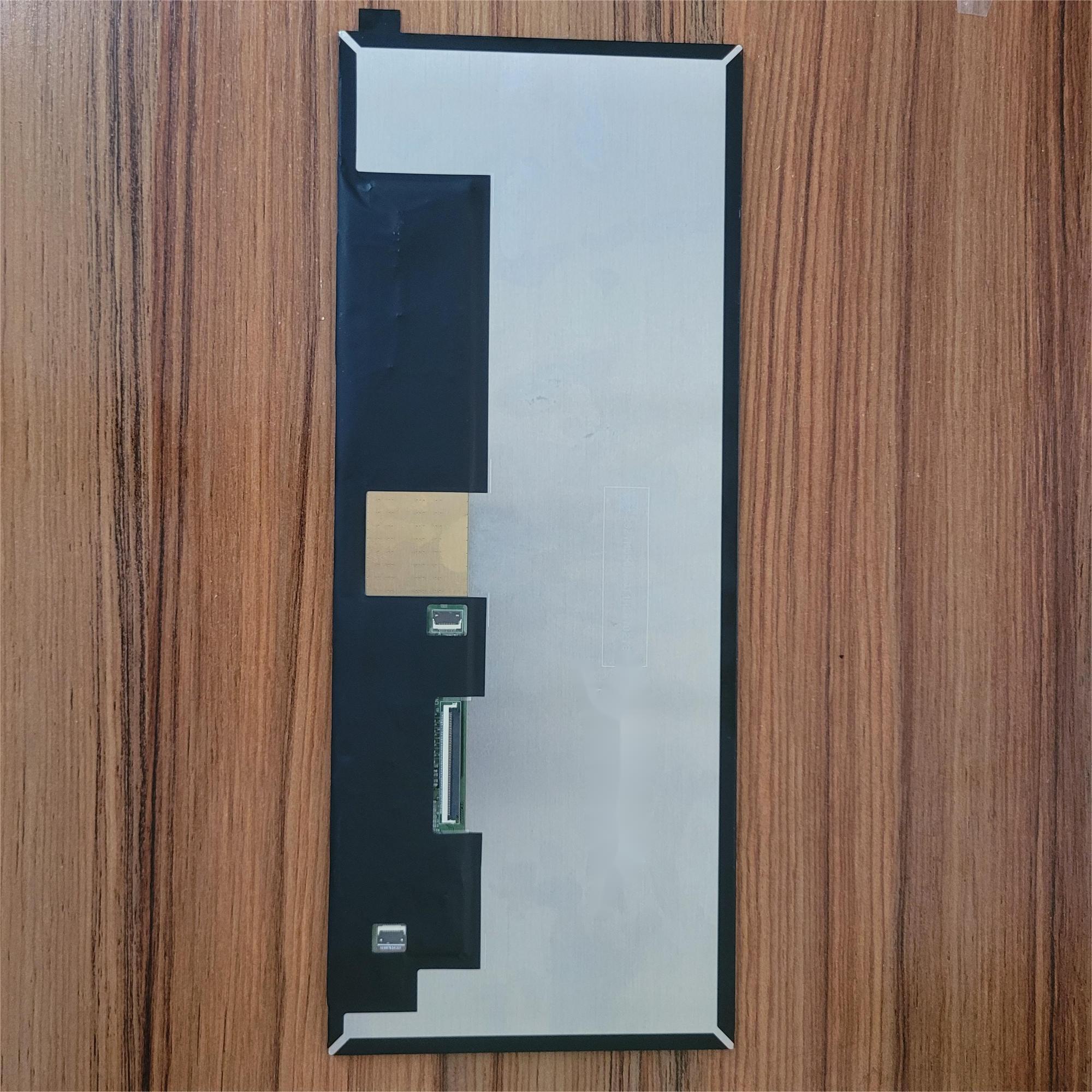

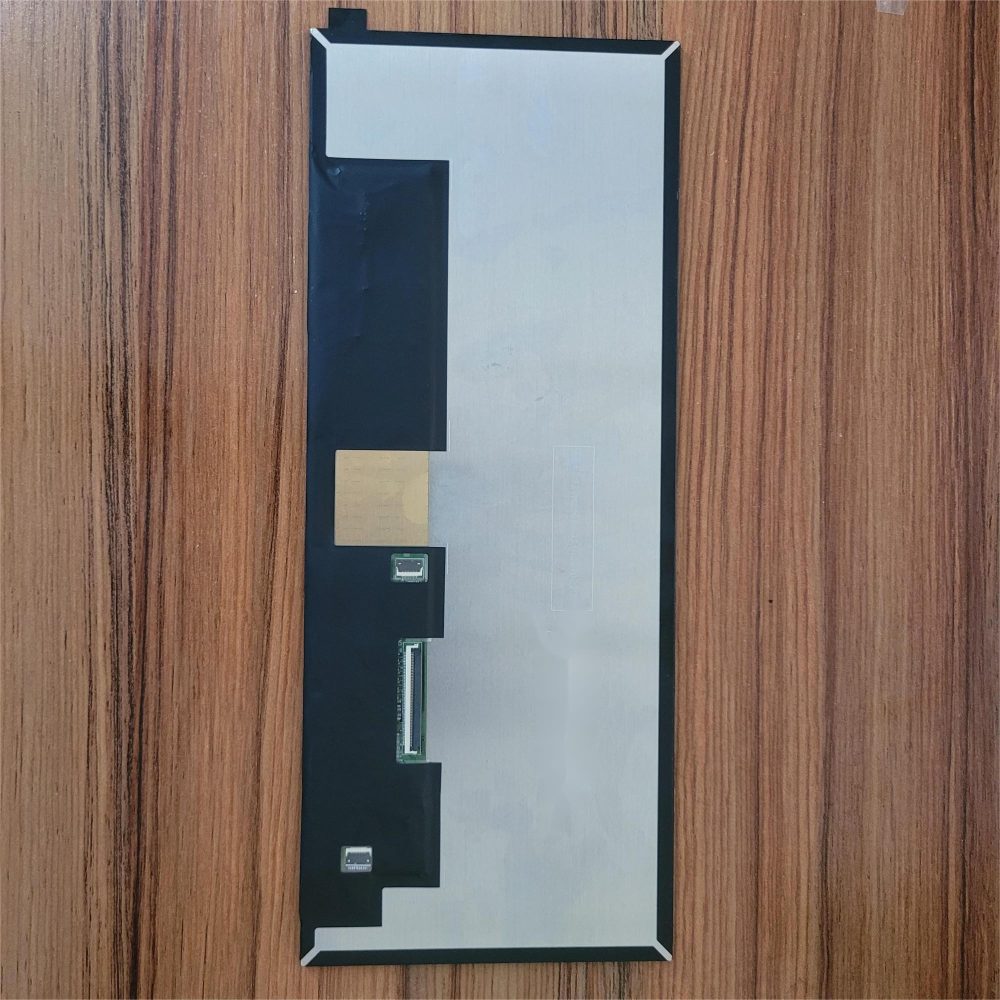

12.3 is a color active matrix TFT LCD module using amorphous silicon TFT’s

(Thin Film Transistors) as an active switching devices. This module has a 12.3 inch diagonally

measured active area with FHD resolutions (1920 horizontal by 720 vertical pixel array). Each

pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this

module can display 16.7M colors

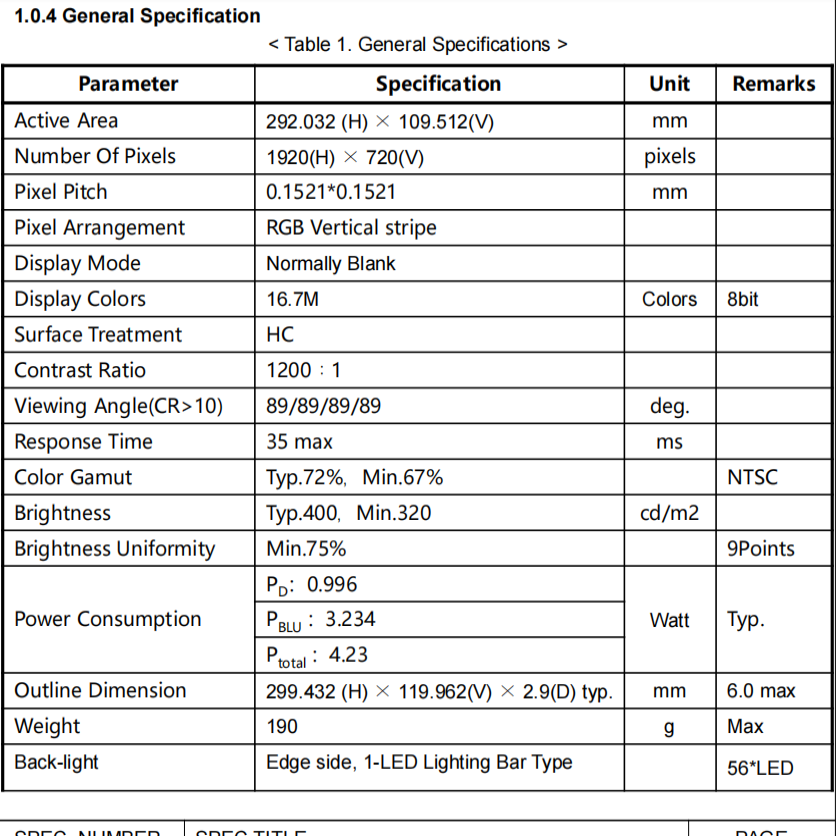

1. Screen size: 12.3inch
2. Resolution: 1920(horizontal)*720(vertical)
3. Technology type: a-Si TFT
4. Overall dimensions (W x H x D) (mm) :299.43(H)*119.96(V)*2.9(D)
5. Active Area(mm):292.032(H)*109.51(V)
6. Display interface: LVDS
7. Color depth: 16.7M(8bit)
8. Brightness: 400cd/m²
9. Perspective: 85/85/85/85

10.NTSC: 75%

11. Working temperature: -20℃+70℃
