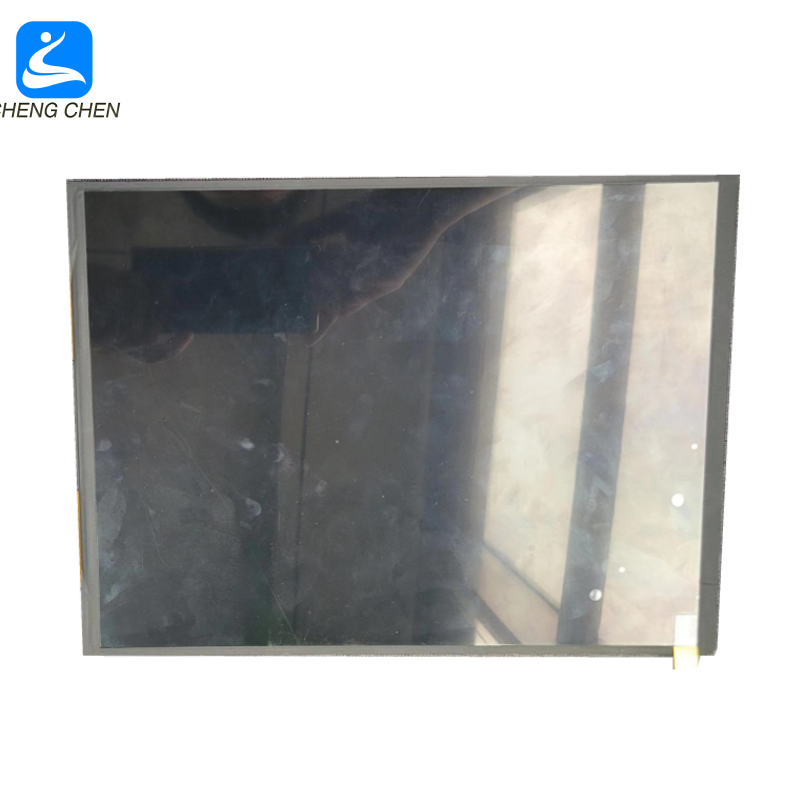

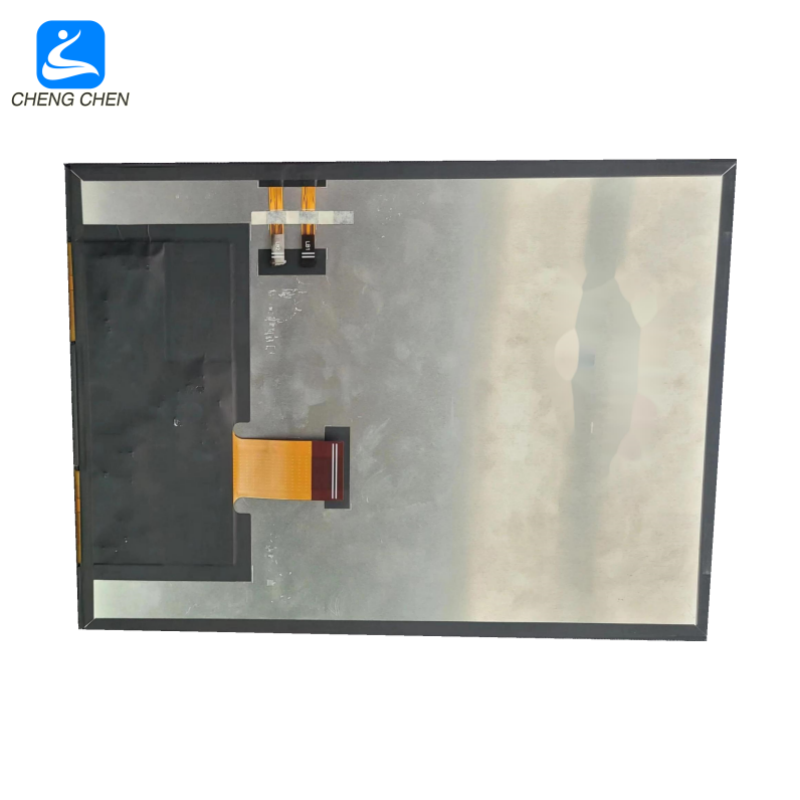

The 13.2inch is a color active matrix thin film transistor (TFT) liquid crystal display (LCD). This model is composed

by LTPS LCD, TDDI drive IC, FPC(flexible printed circuit) and backlight unit

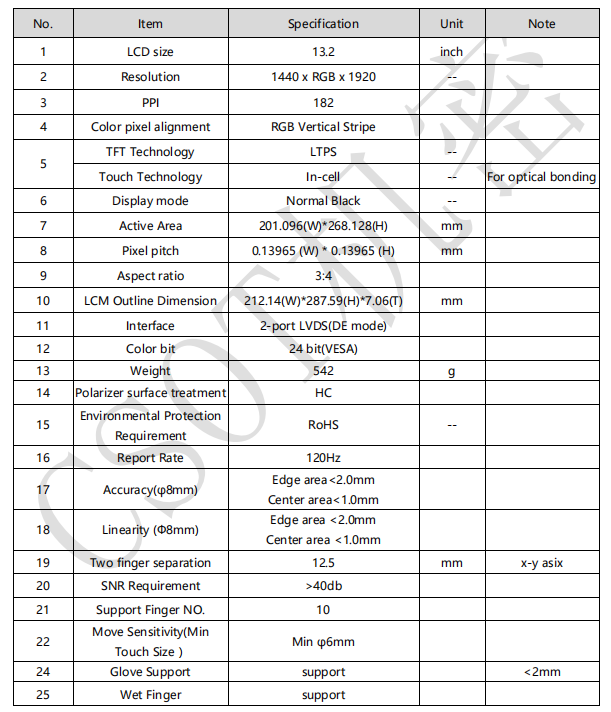

Product Parameter

1. Screen size: 13.2inch
2. Resolution: 1440(horizontal)*1920(vertical)
3. Technology type: LTPS
4. Overall dimensions (W x H x D) (mm) :212.14(W)*287.59(H)*7.06(T)
5. Active Area(mm):201.096(W)*268.128(H)
6. Display interface:2-port LVDS
7. Color depth: 16.7M(24 bit(VESA))
8. Brightness: 800cd/m²
9. Perspective: 85/85/85/85

10.NTSC:85%

11. Working temperature: -30℃+80℃
