ESL133B54-116-0504

is a color active matrix TFT LCD module using amorphous silicon TFT’s

(Thin Film Transistors) as an active switching devices. This module has a 13.

3 inch diagonally me

asured active area with

Full-HD

resolutions

(1920 horizontal by 1080 vertical pixel array). Each

pixel is divided into RED, GREEN,

BLUE dots which are arranged in vertical stripe and this mod

ule can display 16.7 M colors.

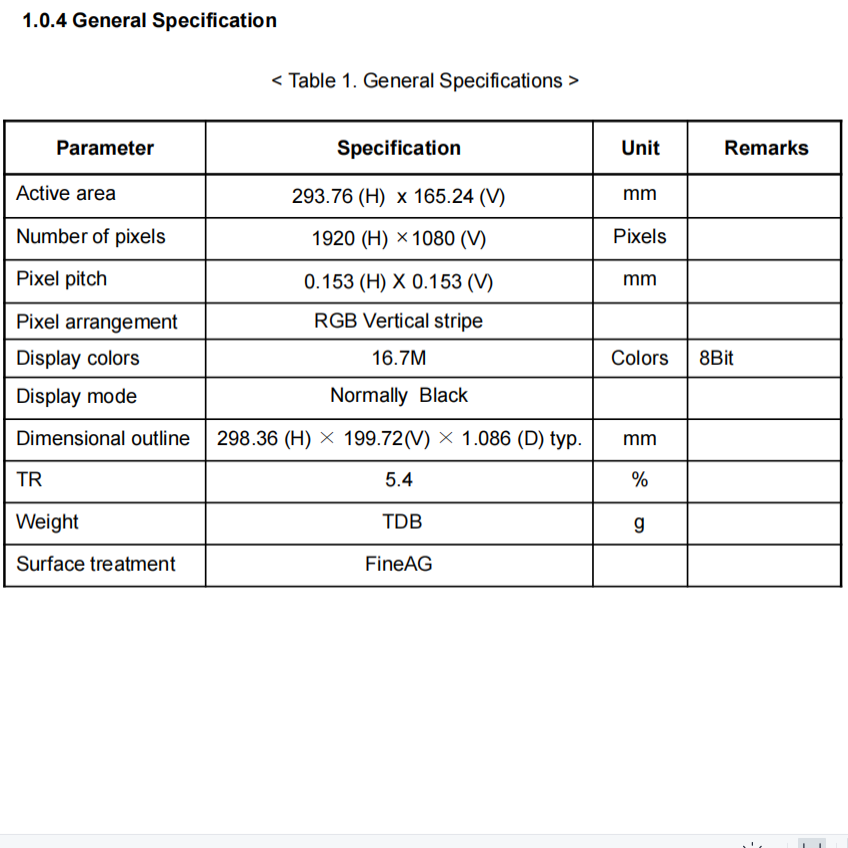

Product Parameter

1. Screen size: 13.3inch
2. Resolution: 1920(horizontal)*1080(vertical)
3. Technology type: a-si TFT
4. Overall dimensions (W x H x D) (mm) :307.6 (H) × 183.05(V) × 5.5(D)
5. Active Area(mm):293.76 (H) x 165.24 (V)
6. Display interface:EDP

7.Contrast Ratio:1000:1

7. Color depth: 16.7M
8. Brightness: 500-1000cd/m²
9. Perspective: 85/85/85/85

10.NTSC:72%

11. Working temperature: -20℃+70℃

12:Touch Technology: custom

13:Report Rate:60HZ
