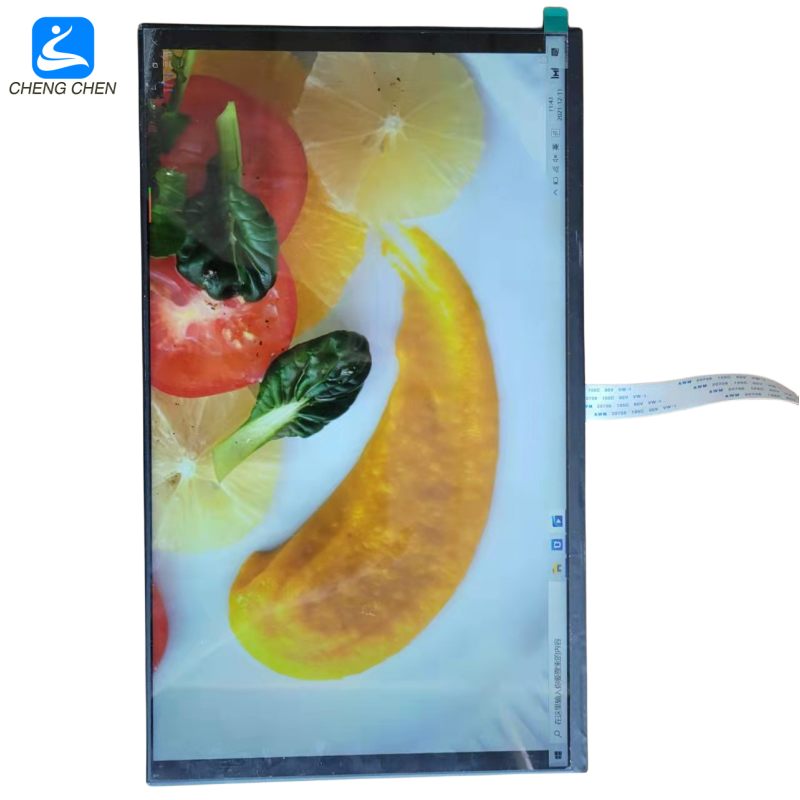

139FHB-N10-6RP0 is a color active matrix LTPS LCD using Low Temperature Poly-sili

con TFT‘ s (Thin Film Transistors) as an active switching devices. The LTPS-LCD has a 13.92

inch diagonally measured active area with FHD resolutions (1920horizontal by 1080vertical pix

el arrays). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical st

ripe and this module can display 16.7M colors.

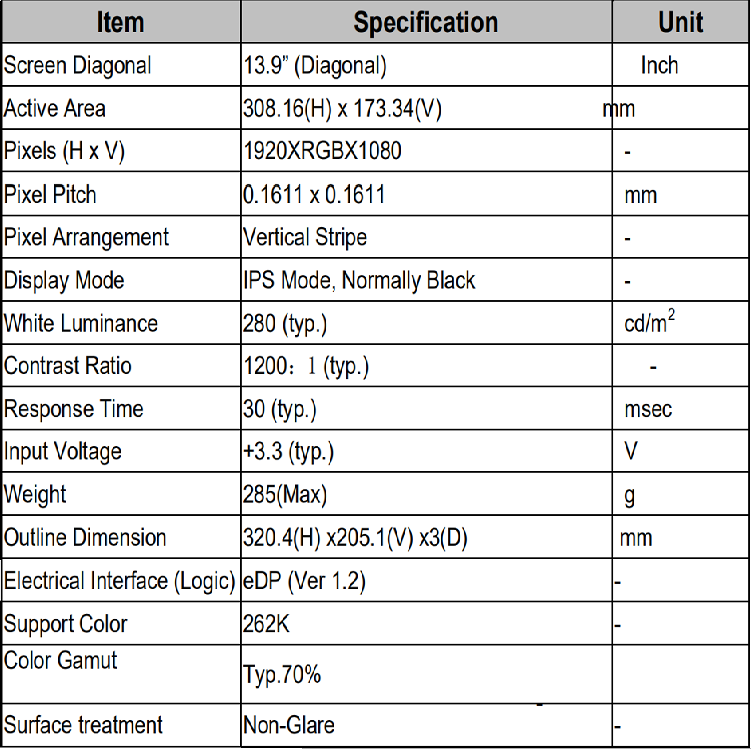

Product Parameter

1. Screen size: 13.9inch
2. Resolution: 1920(horizontal)*1080(vertical)
3. Technology type: LTPS
4. Overall dimensions (W x H x D) (mm) :186.5(W)*317(H)*4.5(T)
5. Active Area(mm):173.34(W)*308.16(H)
6. Display interface:EDP
7. Color depth: 16.7M(8bit)
8. Brightness: 300-1300cd/m²
9. Perspective: 85/85/85/85

10.NTSC:73%

11. Working temperature: -20℃+70℃
