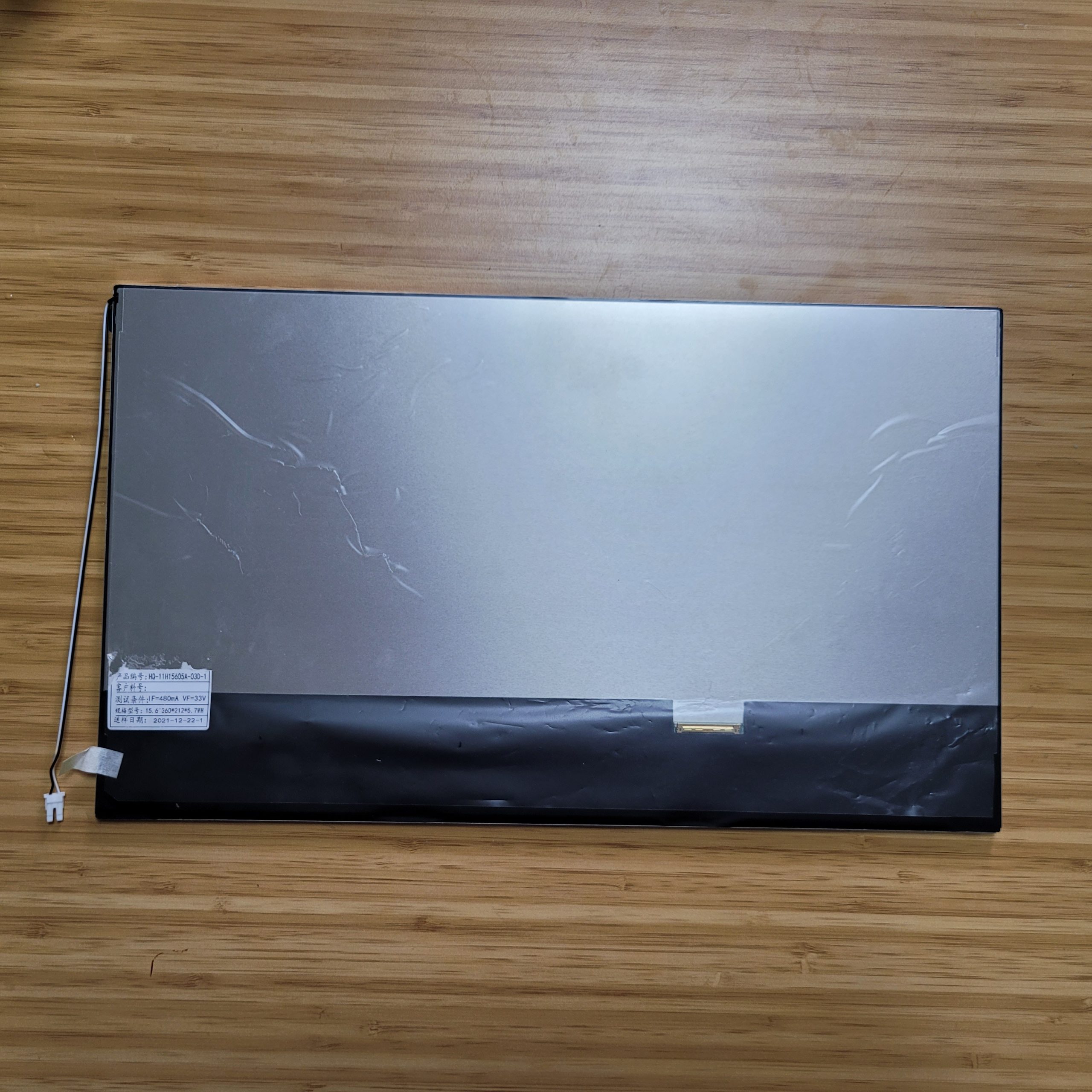

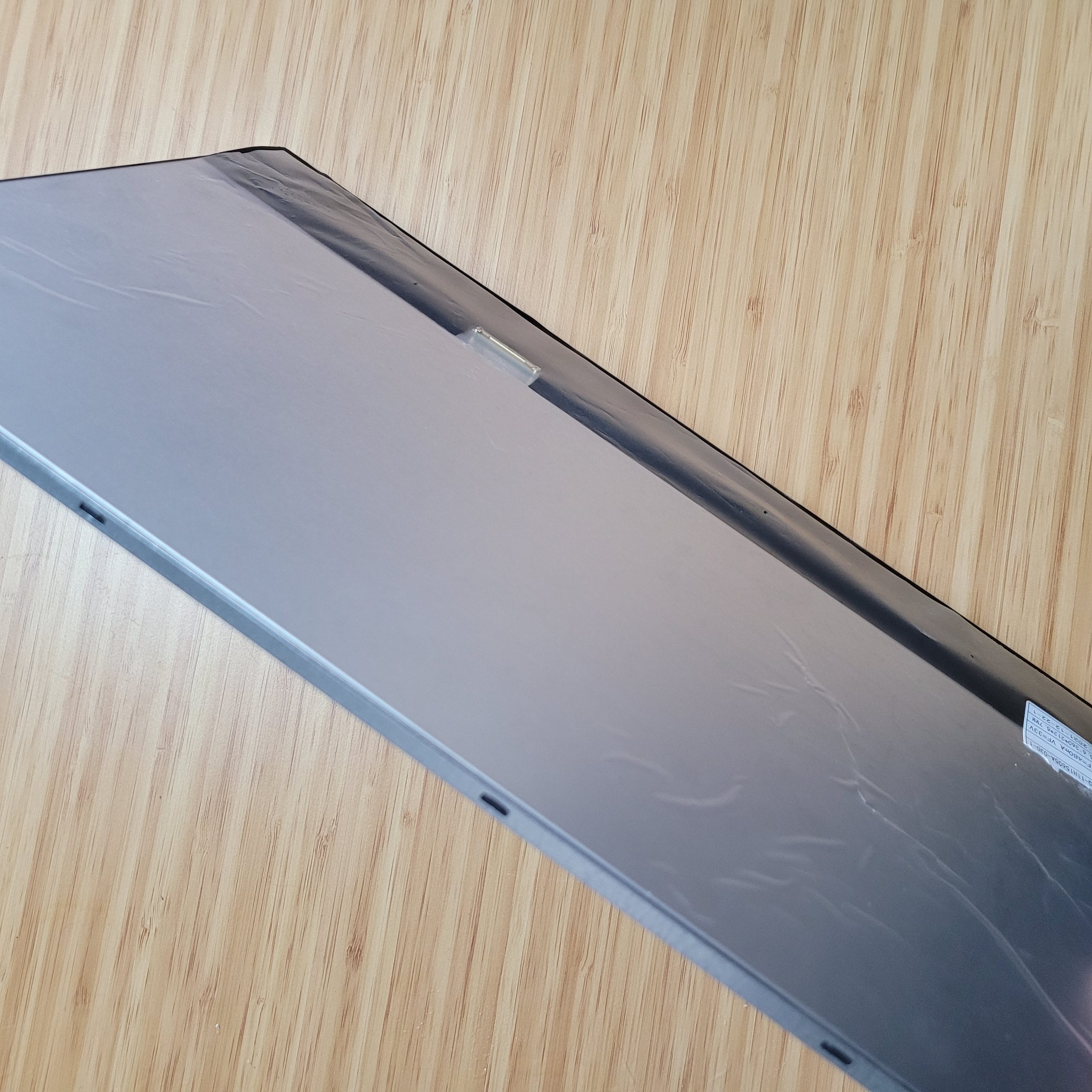

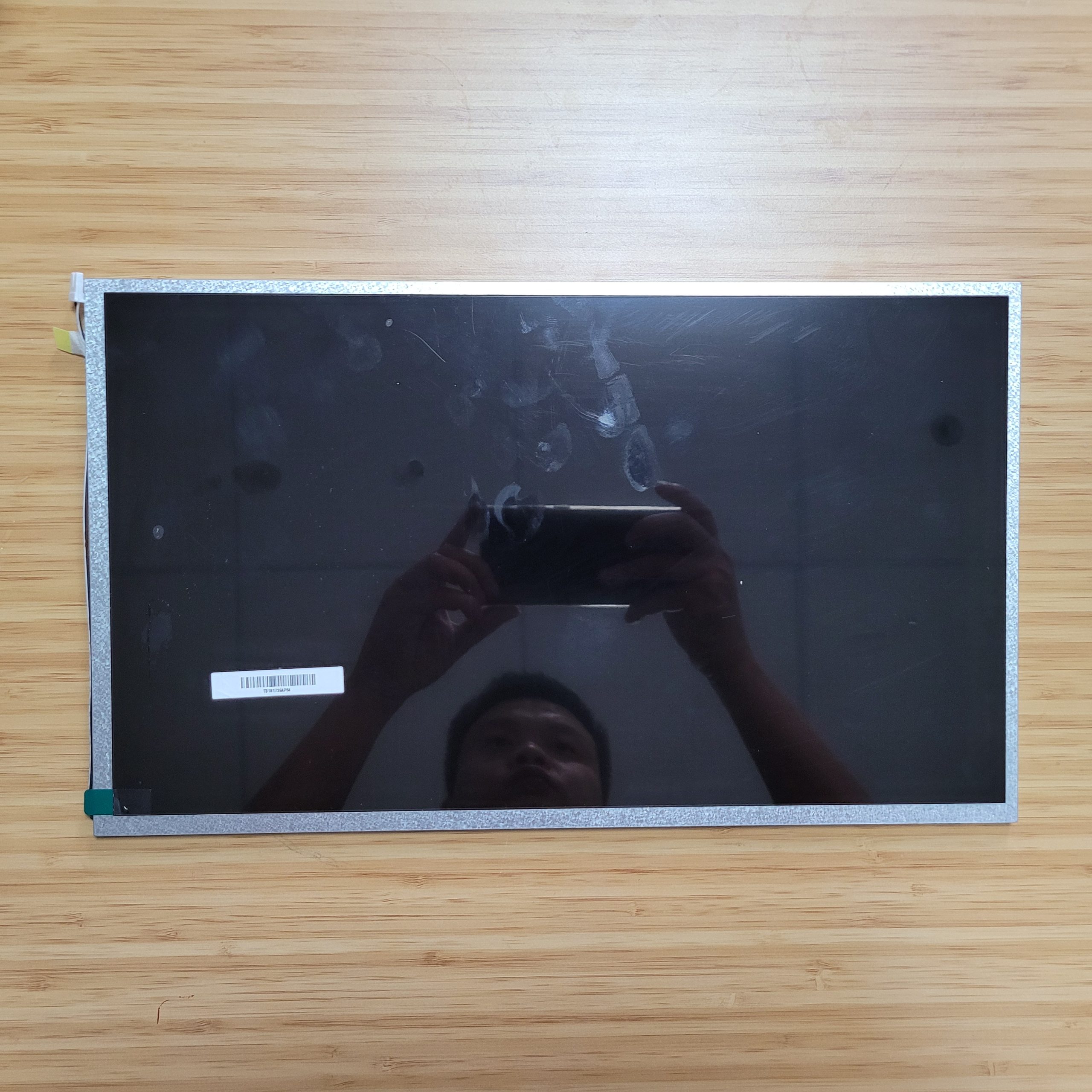

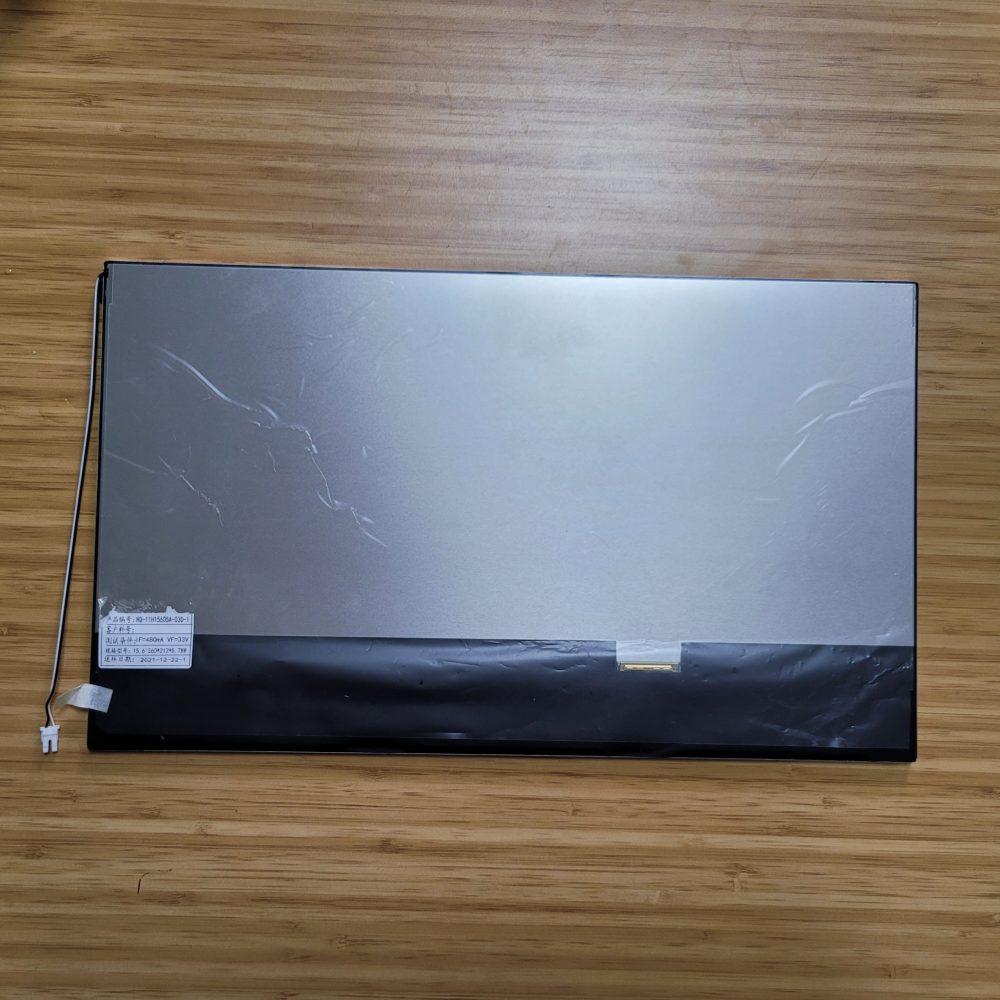

cc156GUW5-02990A-MX is a color active matrix thin
film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT
as a switching device. This model is transflective type TFT LCD panel and a
driving circuit. This TFT LCD has a 15.6” inch diagonally measured active display
area with 5760×1080 dot (1920 horizontal by 1080 vertical pixel) resolution.

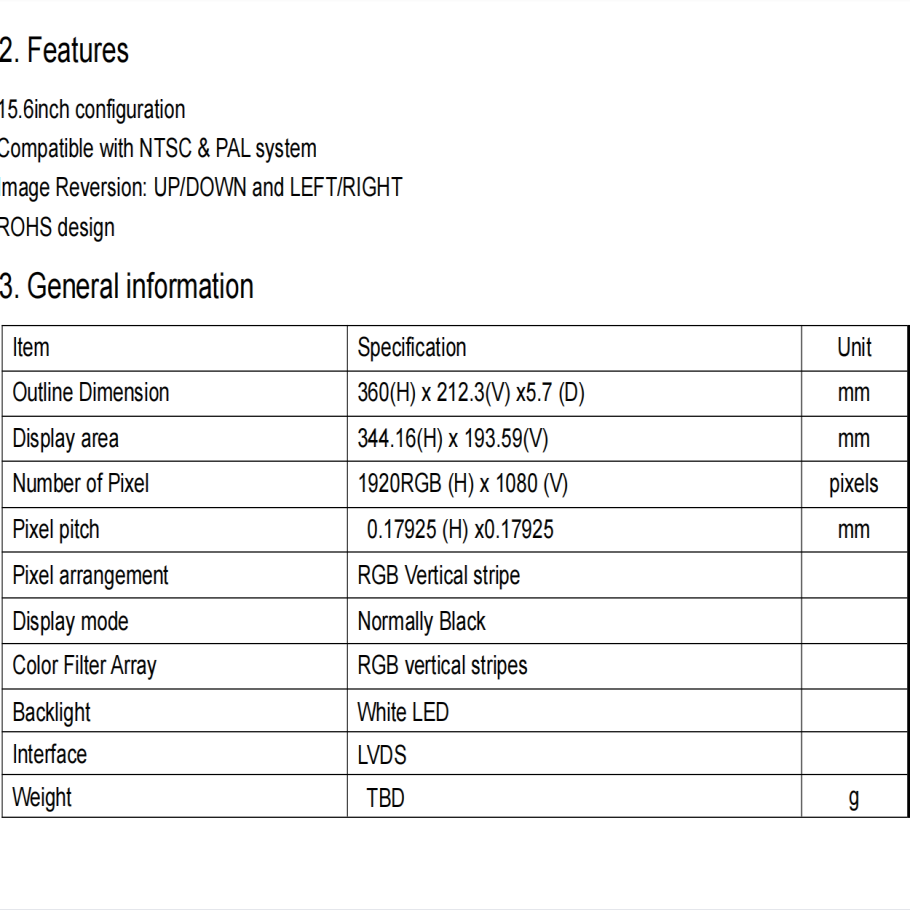

Product Parameter
1. Screen size: 15.6 inch
2. Resolution: 1920(horizontal)*1080(vertical)
3. Technology type: a-si TFT
4. Overall dimensions (W x H x D) (mm) :360(H) x 212.3(V) x5.7 (D)
5. Active Area (mm):344.16(H) x 193.59(V)
6. Display interface: EDP
7. Color depth: 16.7M 8BIT
8. Brightness: 500cd/m²
9. Perspective: 65/65/65/65
10.NTSC:22%
11. Working temperature: -20℃+70℃
12:Touch Technology: custom
13:Report Rate:60HZ
