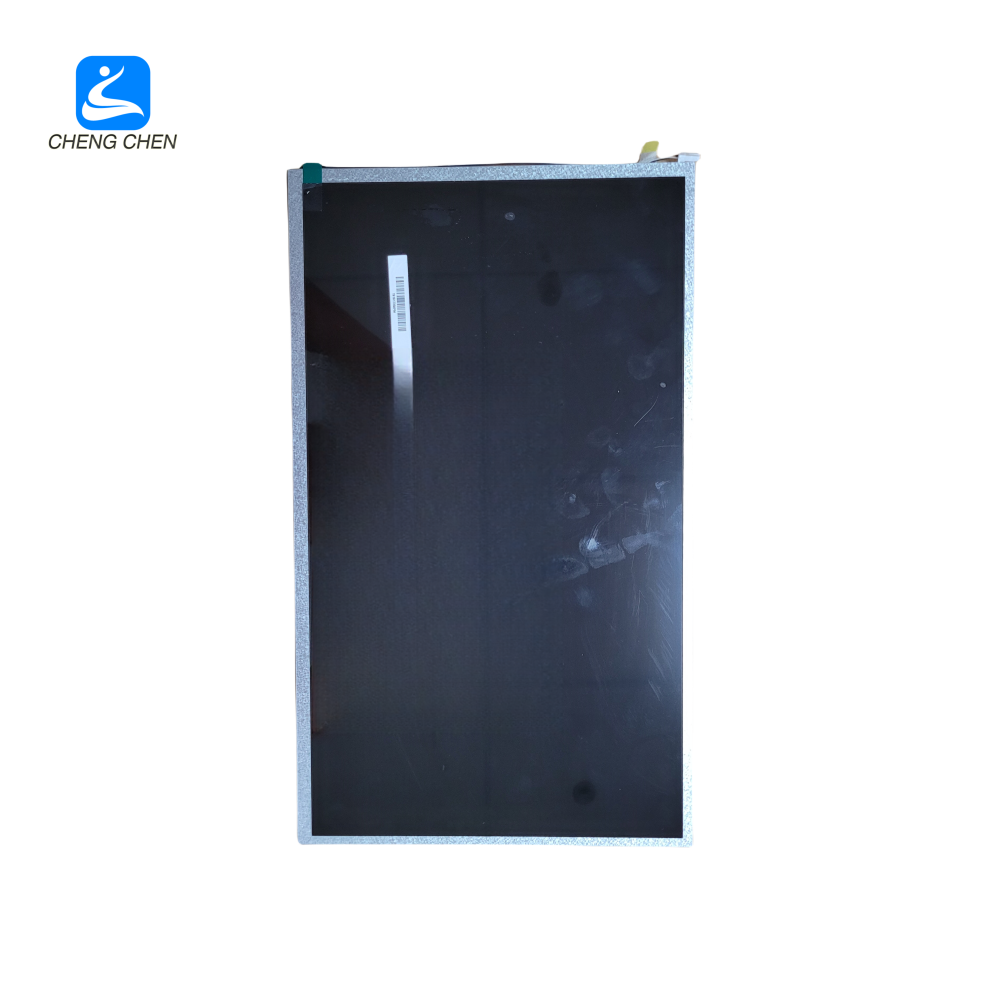

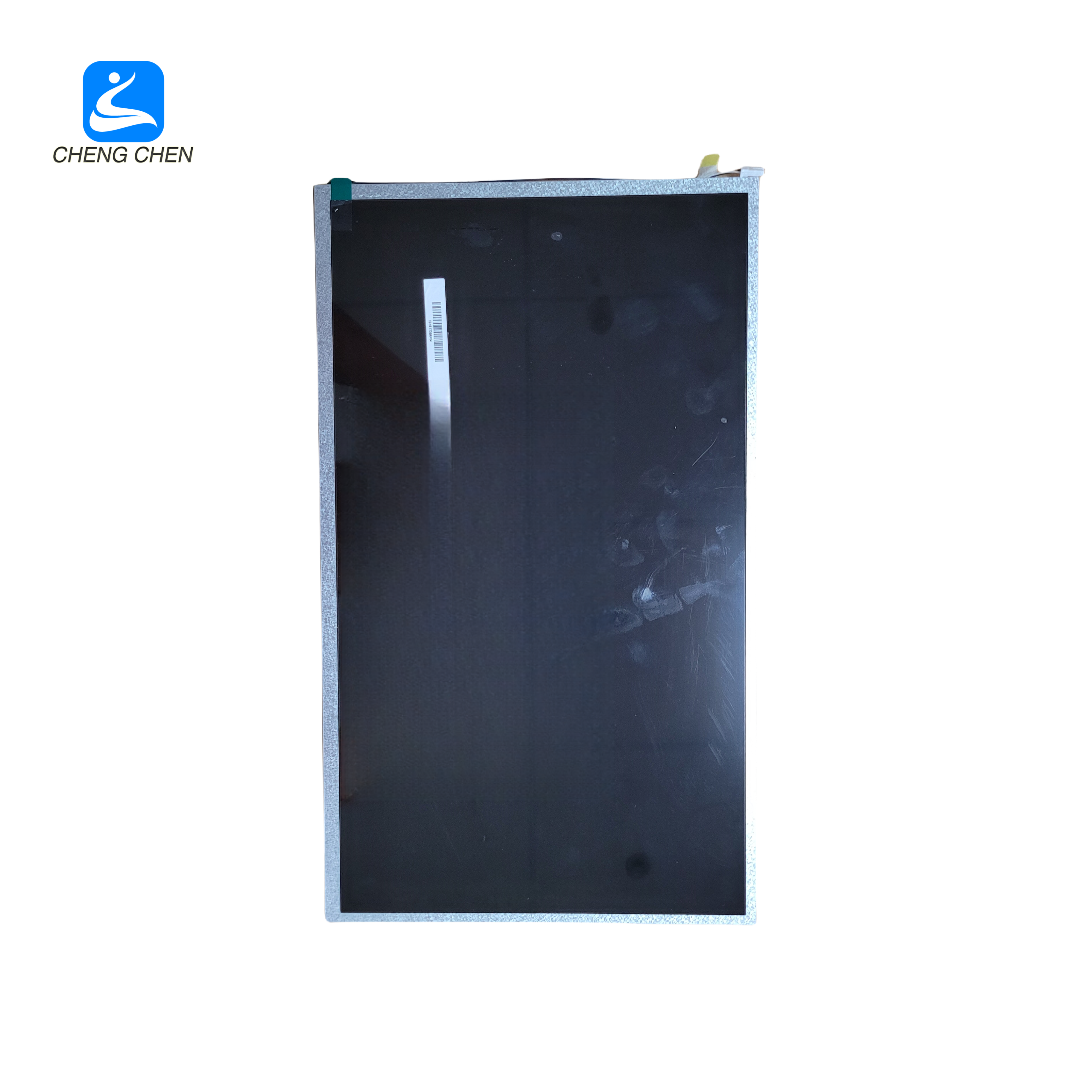

The 15.6 TPM is a color active matrix thin film transistor (TFT) liquid crystal display (LCD). This module is

composed by TFT-LCD, TDDI drive IC, bridge IC, FPC (flexible printed circuit), backlight unit and Cover Lens.

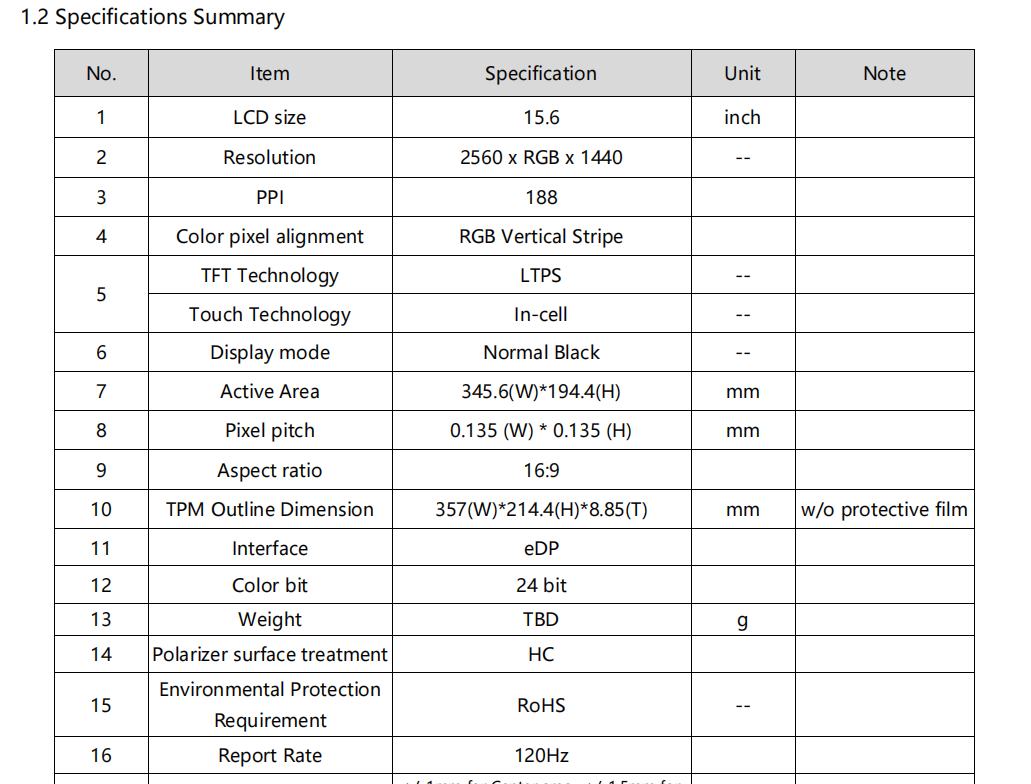

Product Parameter

1. Screen size: 15.6inch
2. Resolution: 2560(horizontal)*1440(vertical)
3. Technology type: LTPS

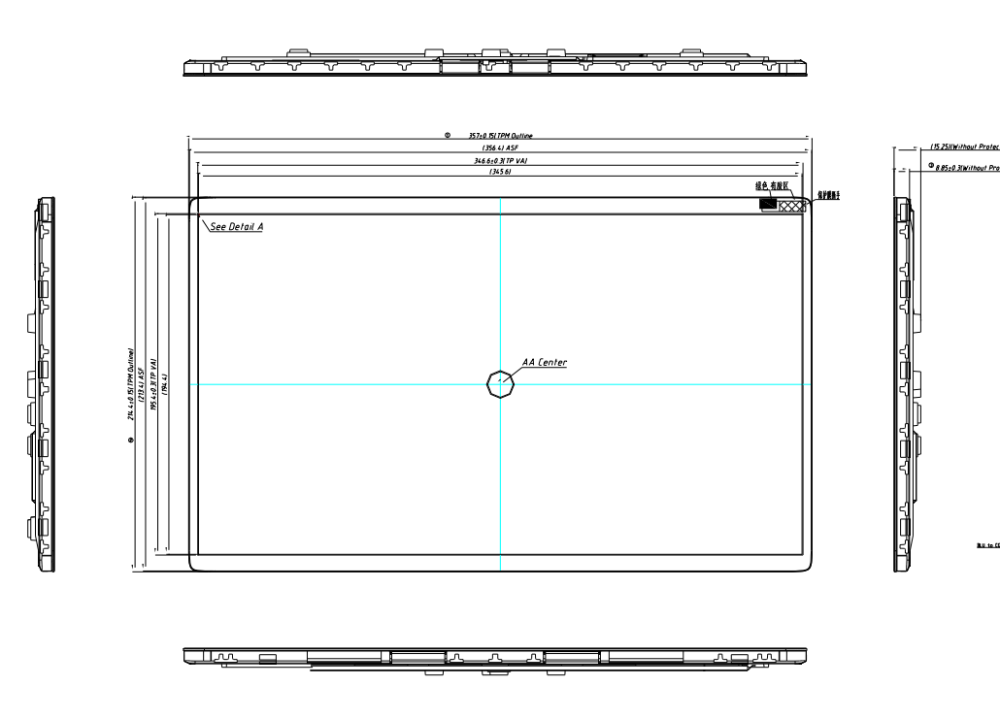

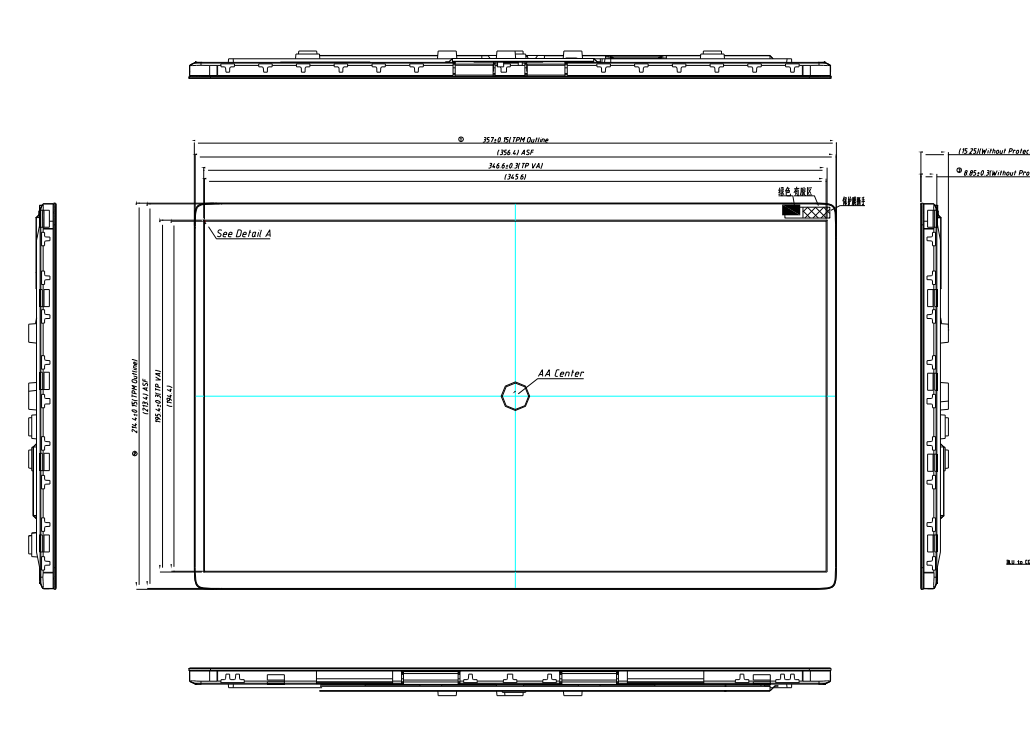

4. Overall dimensions (W x H x D) (mm) :357(W)*214.4(H)*8.85(T)
5. Active Area(mm):194.4(W)*345.6(H)
6. Display interface:EDP
7. Color depth: 24bit
8. Brightness: 800cd/m²
9. Perspective: 85/85/85/85

10.NTSC:85%

11. Working temperature: -30℃+80℃

12:Touch Technology: IN-CELL

13:Report Rate:120HZ
