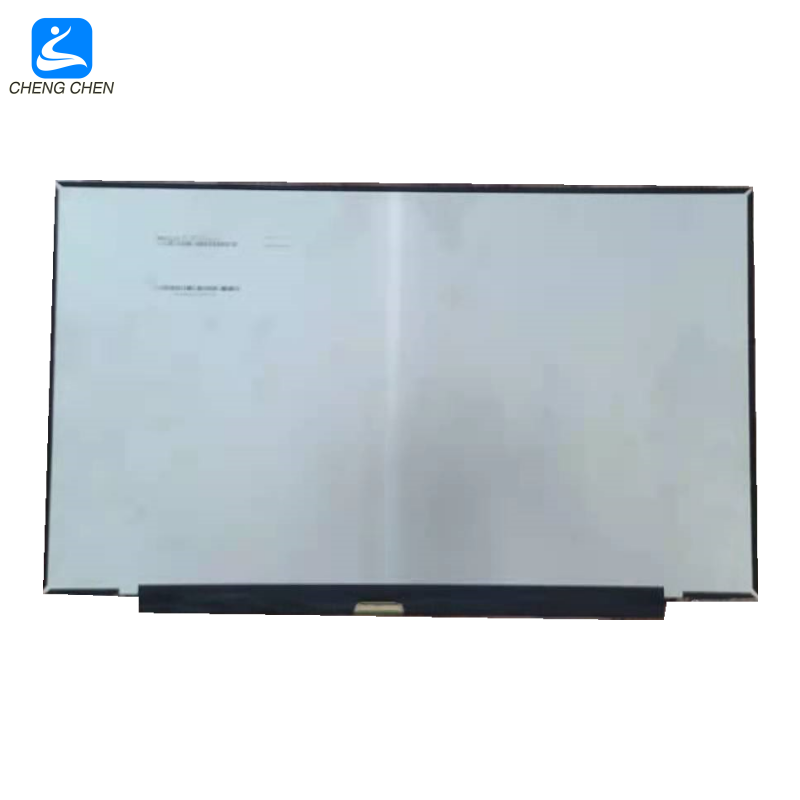

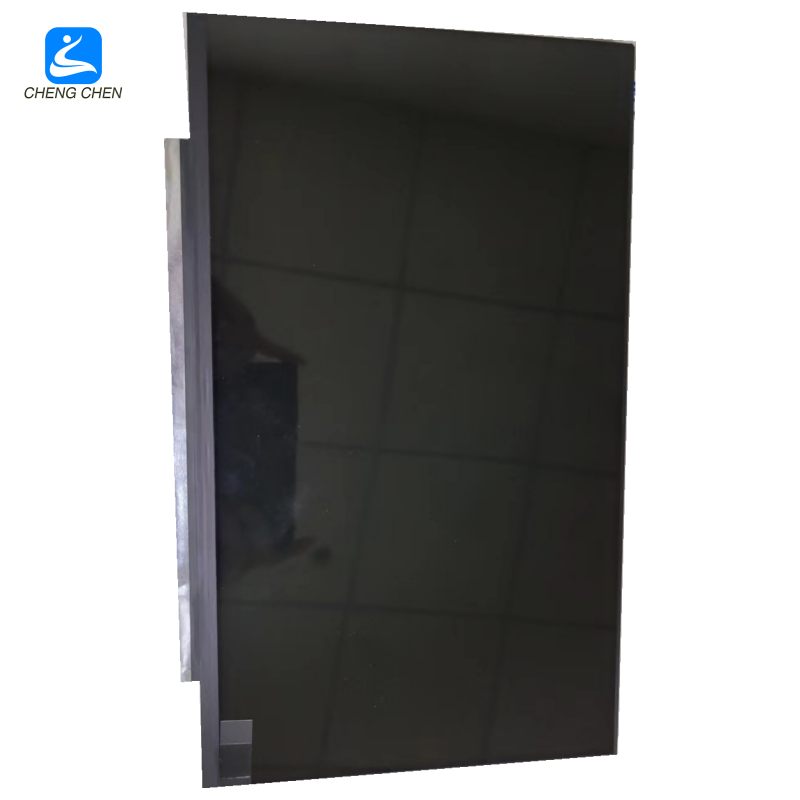

HK173VB-01A is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD
panel, a driver circuit, and LED backlight system. The screen format is intended to
support the 16:9 UHD, 3840(H) x2160(V) screen and with LED backlight driving circuit.
All input signals are eDP(Embedded DisplayPort) interface compatible.

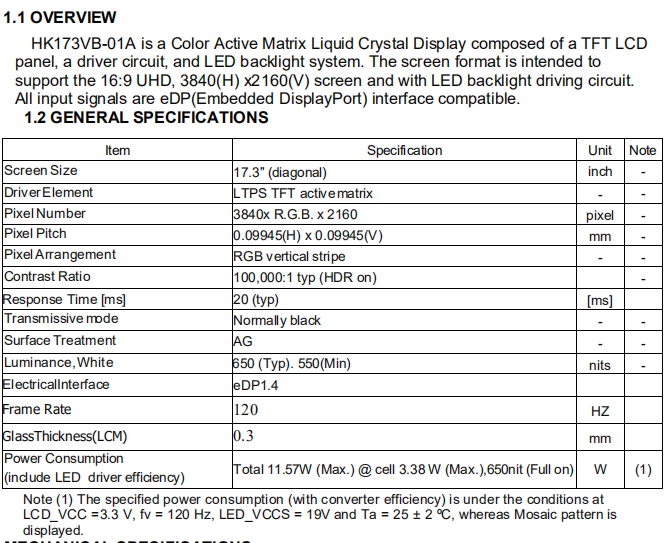

Product Parameter
1. Screen size: 17.3inch
2. Resolution: 3840(horizontal)*2160(vertical)
3. Technology type: LTPS TFT active matrix

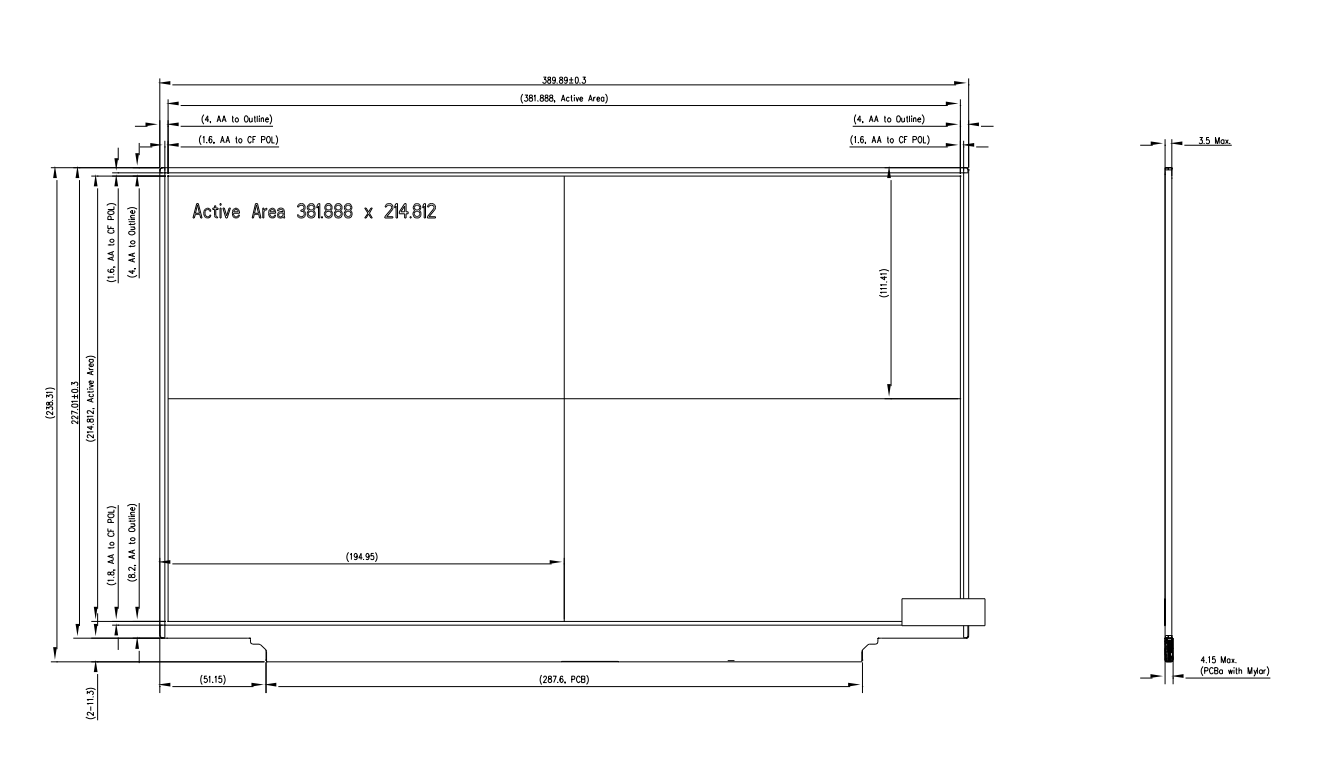

4. Overall dimensions (W x H x D) (mm) :389.89(H) x 227.01(V) x3.5 (D)
5. Active Area (mm):381.88(H) x 214.81(V)
6. Display interface: EDP1.4
7.Contrast Ratio:100000:1
7. Color depth: 16.7M 8BIT
8. Brightness: 500cd/m²
9. Perspective: 85/85/85/85
10.NTSC:HDR1000
11. Working temperature: -0℃+50℃
12:Touch Technology: custom
13:Report Rate:120HZ
