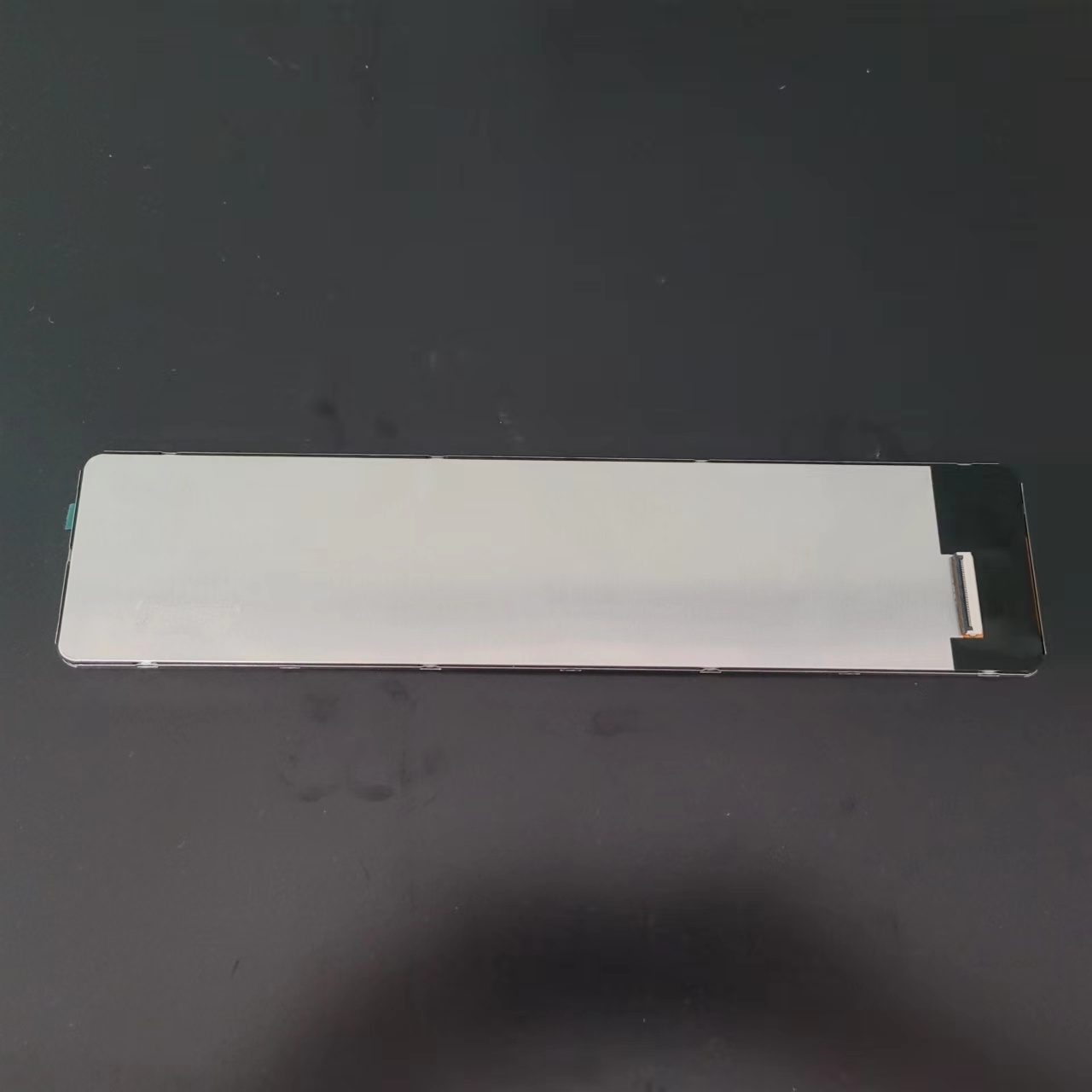

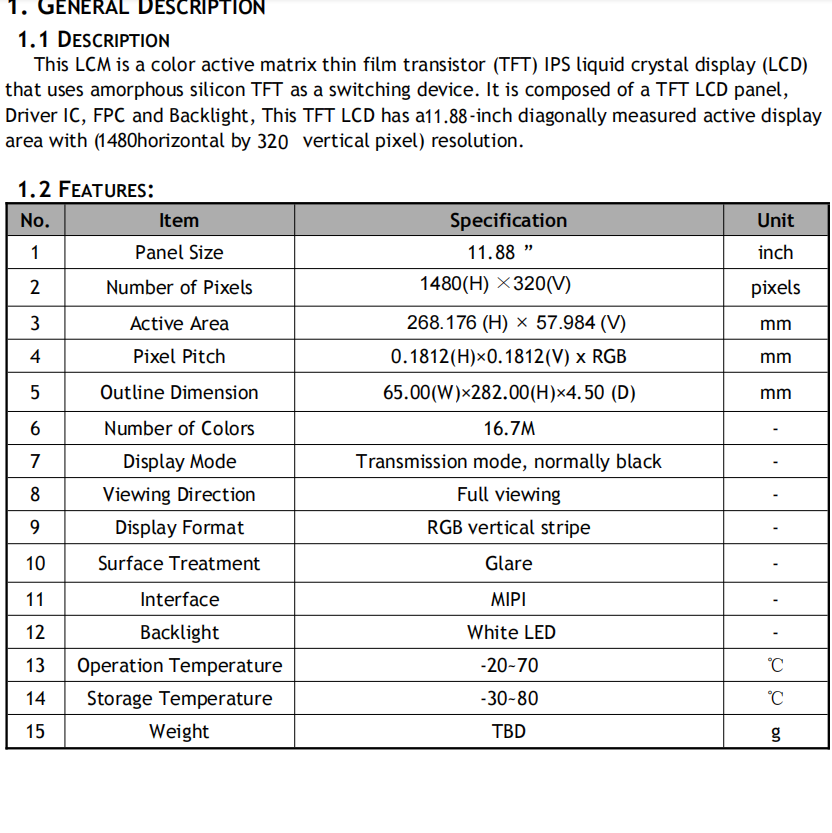

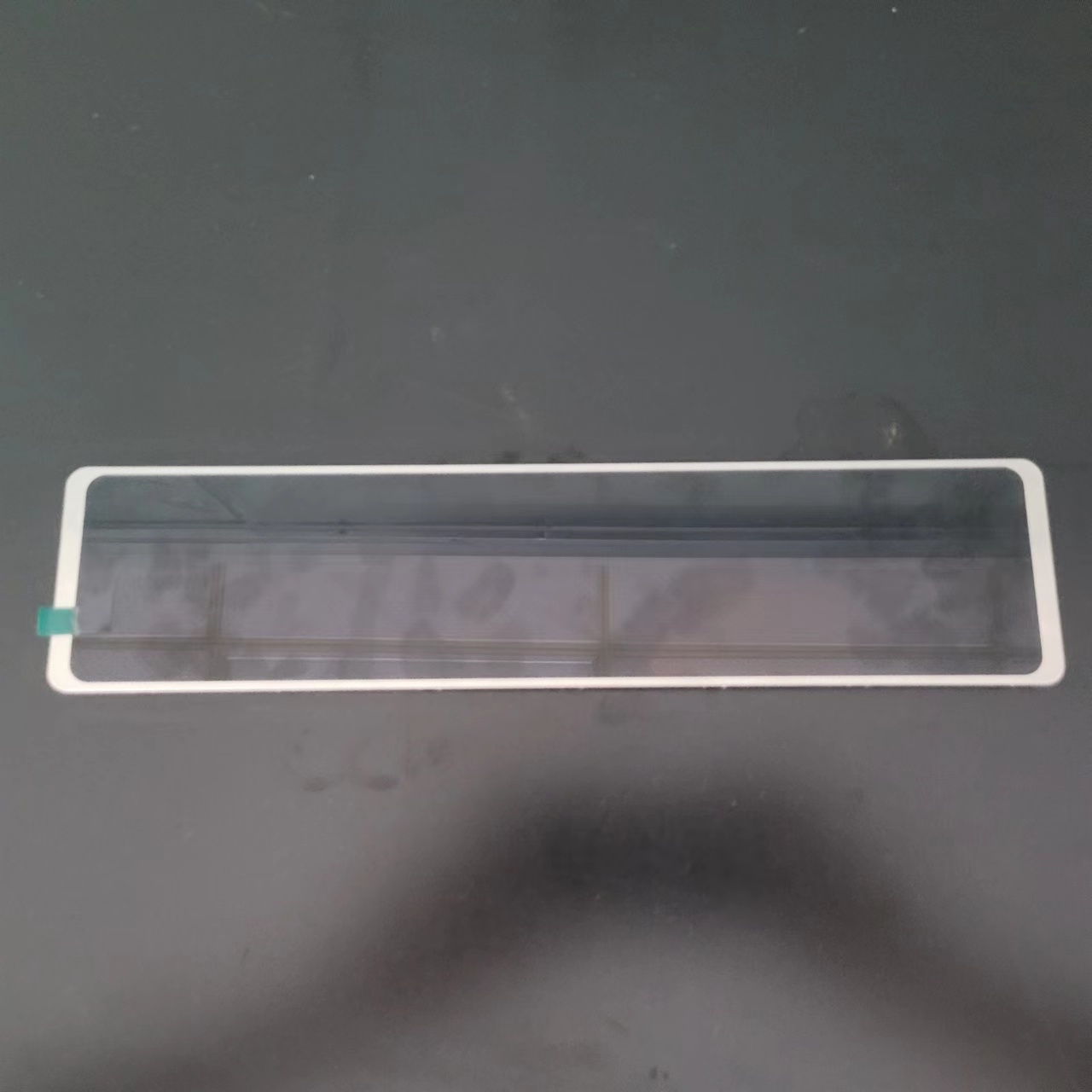

This LCM is a color active matrix thin film transistor (TFT) IPS liquid crystal display (LCD)
that uses amorphous silicon TFT as a switching device. It is composed of a TFT LCD panel,
Driver IC, FPC and Backlight, This TFT LCD has a11.88-inch diagonally measured active display
area with (1480horizontal by 320 vertical pixel) resolution.
- Screen size: 11.9inches
- Resolution: 1480(horizontal)*320(vertical)
- Technology type: a-Si TFT

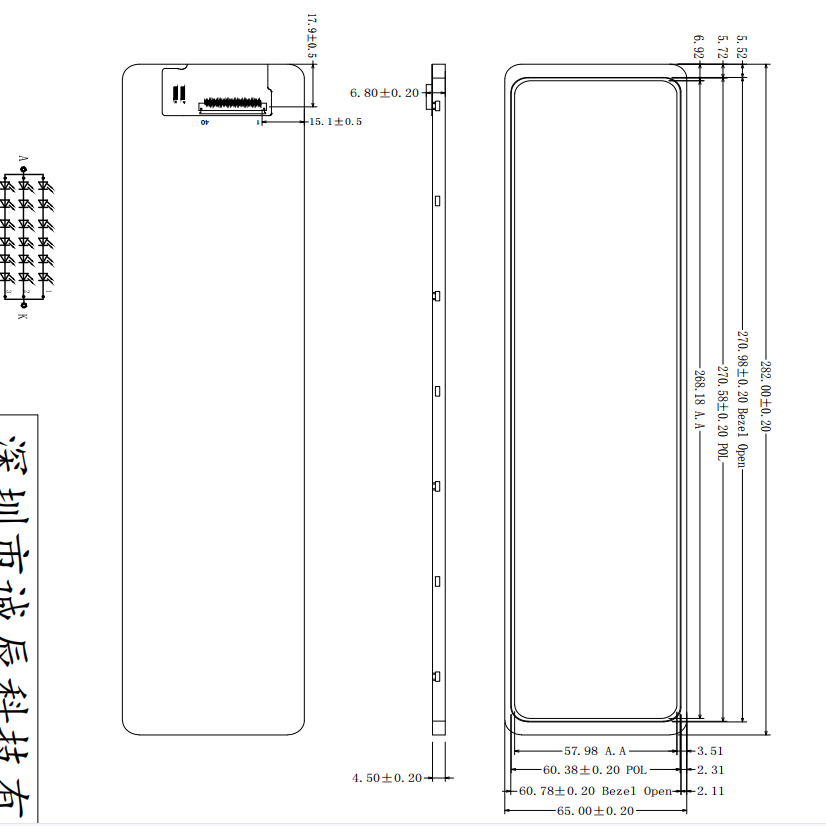

- Overall dimensions (W x H x H) (mm) : 65.00(W)×282.00. (H)×4.50 (D)
- Active Area(mm):268.176 (H) × 57.984 (V)
- Display interface: MIPI
- Color depth: 16.7M
- Brightness: 800 cd/m2
- Perspective: 80/80/80/80
10.NTSC: 65%
- Working temperature: -20℃+70℃
